| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| SVHC Present | |
| Supply Voltage | |
| Voltage Rating | |
| Weight |

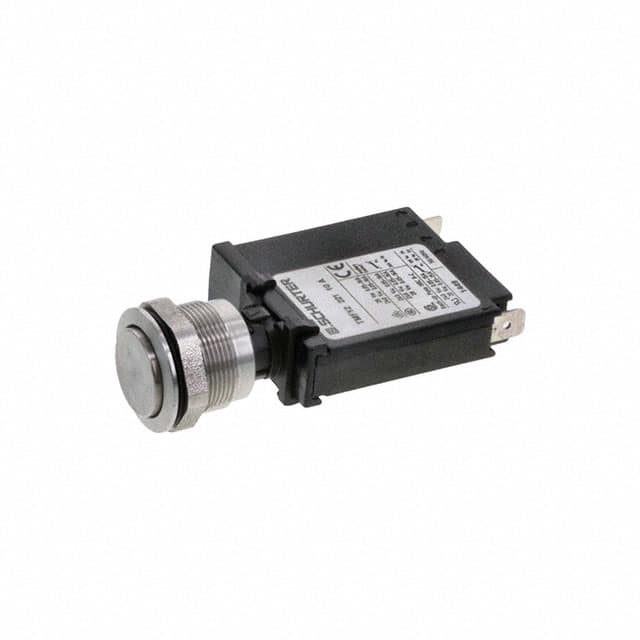

The Schurter 4410.9015 is a thermal-magnetic circuit breaker from the TM12-MSM series, designed for reliable circuit protection in various applications. This single-pole breaker features a manual ON/OFF actuation type and a panel mount design for easy integration into equipment.
Key electrical specifications include a rated voltage of 240 VAC at 50/60 Hz and 28 VDC, with a rated current range of 0.05 to 15 A. It boasts a conditional short circuit capacity of 1 kA at 240 VAC and meets IEC 60934 standards. The breaker offers robust dielectric strength and insulation resistance.
Mechanical and environmental resilience are ensured through features like IK07 shock protection and resistance to vibration and shock as per IEC standards. The operating temperature range is -5 °C to 60 °C. Applications include power supplies, uninterruptible power supplies, power tools, and household appliances.
The rated voltage is 240 VAC at 50/60 Hz and 28 VDC.
The current rating is 15A.
It has 1 pole.
It uses manual ON/OFF actuation.
The allowable operation temperature is -5 °C to 60 °C.
Applications include power supplies, uninterruptible power supply, power tools, and household appliances.
