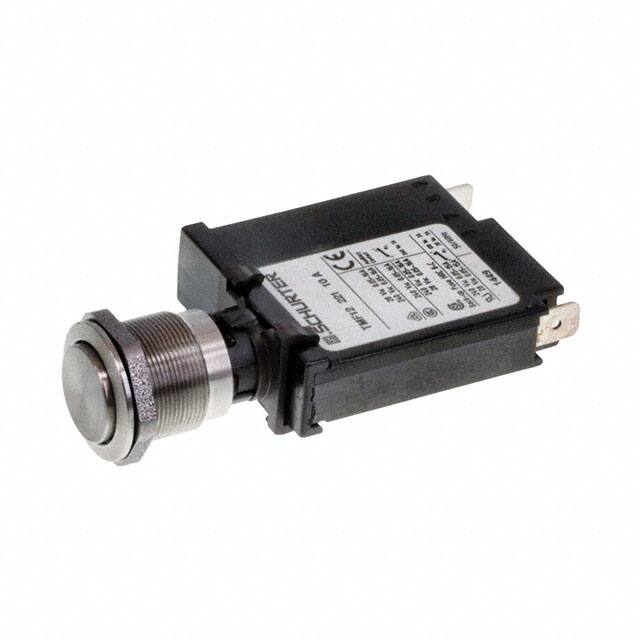

The Schurter Inc. 4410.9013 is a thermal-magnetic circuit breaker designed for reliable equipment protection. This 1-pole breaker features a manual ON/OFF actuation type and a panel mount configuration.
Key electrical specifications include a rated AC voltage of 240V and a rated DC voltage of 28V. The rated current range is from 0.05A to 15A, with this specific model rated at 10A. It boasts a conditional short circuit capacity of 1 kA at 240VAC and meets IEC 60934 standards. Electrical isolation is provided by a dielectric strength of over 1.5 kV at 50 Hz and an impulse withstand voltage of over 2.5 kV.
Mechanical and environmental resilience are also key features. The breaker operates within a temperature range of -5°C to 60°C and has undergone vibration and shock resistance testing according to IEC standards. It also includes a salt spray test rating.
Applications for this circuit breaker include power supplies, uninterruptible power supplies, power tools, and household appliances. It is designed for durability with a typical endurance of 5000 switching cycles.
The breaker is rated for 240VAC and 28VDC operation.
The allowable operating temperature range is -5°C to 60°C.
The tripping type is thermal-magnetic.
The actuation type is manual ON/OFF with push-push operation.
It is panel mount.
It is a single-pole breaker (1 pole).
The rated current is 10A.
