| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating | |
| Weight |

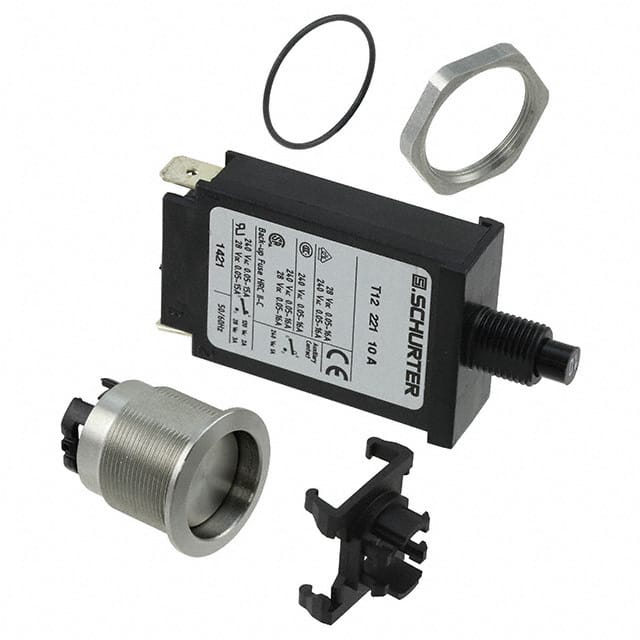

The Schurter Inc. 4410.9001 is a thermal circuit breaker with a metal actuator, suitable for panel mounting. This 1-pole device offers a rated current of 10A and can operate at up to 240VAC or 28VDC.
Key electrical specifications include a conditional short circuit capacity of 1 kA (AC 240V) and dielectric strength exceeding 1.5 kV (50 Hz) or 2.5 kV (Impulse 1.2/50 μs). The insulation resistance is greater than 100 MΩ at 500VDC.
Designed for durability, it has an endurance of typically 5000 switching cycles for manual ON/OFF operation. The operating temperature range is -5°C to 60°C. It meets various product standards including IEC 60934, UL 1077, and GB 17701, and is suitable for applications compliant with IEC/UL 62368-1.
Applications for this circuit breaker include power supplies, uninterruptible power supplies, power tools, and household appliances. It features quick connect terminals (6.3 x 0.8 mm) or screw terminals.
The rated voltage is 240 VAC and 28 VDC.
The rated current range is 0.05 - 15/16 A.
The allowable operating temperature is from -5 °C to 60 °C.
The RoHS status is RoHS3 Compliant.
It features manual ON/OFF actuation.
It is designed according to IEC 60934, UL 1077, and GB 17701.
