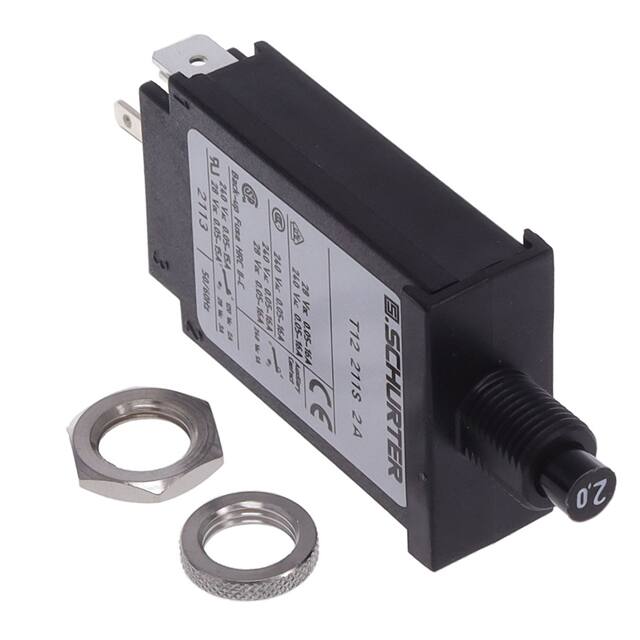

The Schurter Inc. 4410.0439 is a thermal circuit breaker with a 1-pole configuration, suitable for panel mounting. It offers a rated current of 2A and can handle AC voltages up to 240V and DC voltages up to 28V.
This circuit breaker is designed with a thermal actuation type and a push-to-reset mechanism. It meets various approval standards including CSA C22.2 No 235, EN 60934, GB 17701, IEC 60934, and UL1077. The device provides a degree of protection of IP40 on the front side.
Key electrical specifications include a conditional short circuit capacity of 1 kA (AC 240V) and a short circuit capacity (Icn) of 8 x In for currents below 7A and 200A for currents 7A and above at 240VAC. For AC/DC 28V, the short circuit capacity is 400A.
Environmental and mechanical characteristics include an operating temperature range of -5°C to 60°C, vibration resistance up to 10G, and shock resistance of 100G/6ms. The typical endurance is 5000 switching cycles, with a minimum of 50 switching cycles for reset types. It weighs approximately 10g.
It is rated for 240 VAC and 28 VDC.
The current rating is 2 A.
Panel mount.
-5°C to 60°C.
It is a thermal circuit breaker with a push-to-reset actuator.
It meets CSA C22.2 No 235, EN 60934, GB 17701, IEC 60934, and UL1077.
400 A.
