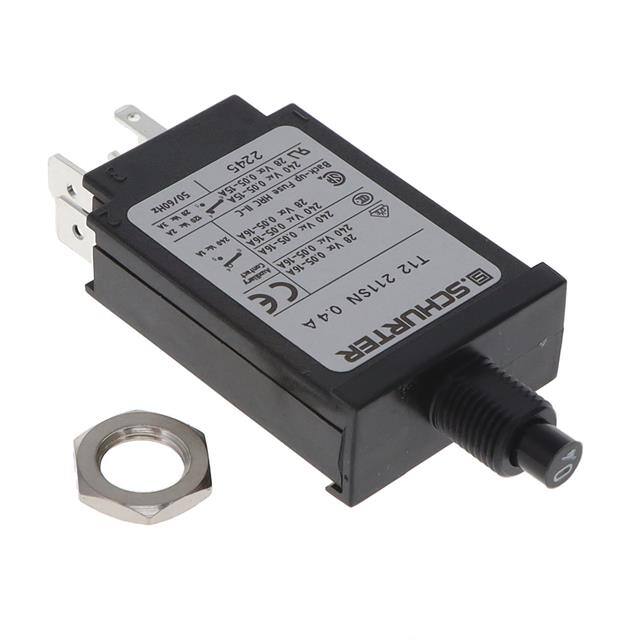

The Schurter Inc. 4410.0324 is a thermal circuit breaker with a single pole configuration. It is designed for panel mounting and features a push-to-reset actuator.
This circuit breaker has a rated voltage of 240 VAC and a DC voltage rating of 28 VDC. The AC current rating ranges from 0.05 to 15/16 A, with a specific rating of 400mA for this model. It offers a conditional short circuit capacity of 1 kA at AC 240V and a short circuit capacity (Icn) of 8 x In for currents less than 7A and 200A for currents greater than or equal to 7A at AC 240V. The AC/DC 28V short circuit capacity is 400A.
Environmental specifications include an operating temperature range of -5 °C to 60 °C and a degree of protection of IP40 on the front side. Mechanical specifications include vibration resistance up to 10 G and shock resistance of 100 G / 6 ms. The typical endurance is 5000 switching cycles.
Approvals include CSA C22.2 No 235, EN 60934, GB 17701, IEC 60934, and UL1077. The RoHS status is RoHS3 Compliant, MSL is 1 Unlimited, and REACH status is REACH Unaffected.
240 VAC and 28 VDC.
400mA.
-5°C to 60°C.
Panel mount.
Thermal.
CSA C22.2 No 235, EN 60934, GB 17701, IEC 60934, UL1077.
Push to reset.
