| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| SVHC Present | |
| Termination Style | |
| Voltage Rating | |
| Weight |

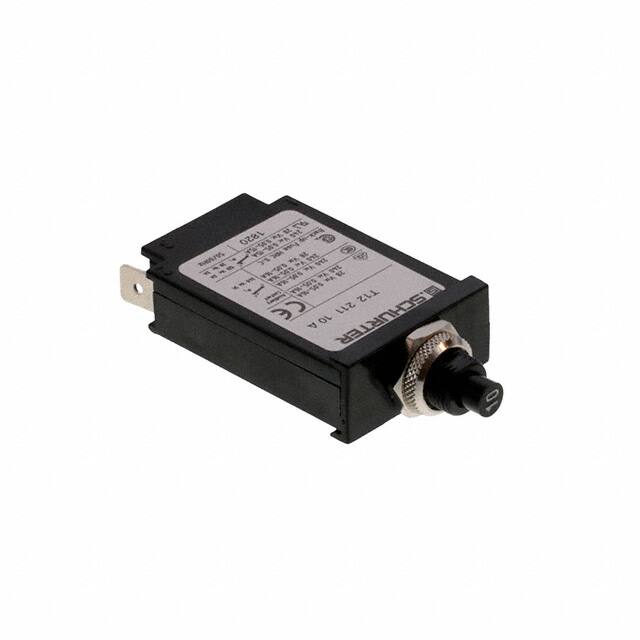

The Schurter Inc. 4410.0106 is a thermal circuit breaker featuring a threaded neck type design with quick connect terminals. It is a 1-pole breaker with a push-to-reset actuation type.
Key electrical specifications include a rated voltage of 240 VAC and 28 VDC, with a rated current range of 0.05 to 15/16 A AC. The breaker has a conditional short circuit capacity of 1 kA at 240 VAC and a short circuit capacity of 200 A at 7 A/240 VAC.
This circuit breaker is designed for applications such as power supplies, uninterruptible power supplies, power tools, and household appliances. It operates within a temperature range of -5 °C to 60 °C and offers a degree of protection of IP40 on the front side.
The device is built for durability, with typical endurance rated at 5000 switching cycles. It meets product standards such as IEC 60934 and has approvals from VDE, UL, and CCC.
The rated voltage is 240 VAC and 28 VDC.
The rated current range is 0.05 to 15/16 A AC.
It has a reset type actuation.
The allowable operation temperature is -5 °C to 60 °C.
The degree of protection for the front side is IP40.
