| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating | |
| Weight |

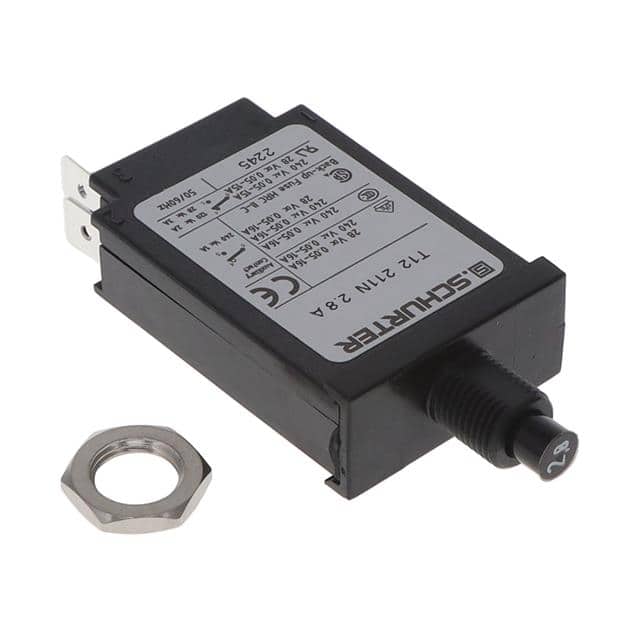

The Schurter Inc. 4410.0047 is a thermal circuit breaker with a 1-pole configuration, suitable for panel mounting. It offers a rated current of 2.8A and a voltage rating of 240VAC, with a DC rating of 28VDC.
This circuit breaker is designed with a threaded neck and quick connect terminals, featuring a thermal tripping mechanism and a push-to-reset actuator. It has a compact design and is positively trip-free, with various mounting possibilities available. The ingress protection rating for the front side is IP40.
Key technical specifications include a conditional short circuit capacity of 1 kA (AC 240V) and a short circuit capacity of 8 x In (at In < 7A/240VAC) or 200 A (at In ≥ 7A/240VAC). It operates within a temperature range of -5°C to 60°C and has an endurance of typically 5000 switching cycles.
Applications for this circuit breaker include power supplies, uninterruptible power supplies, power tools, and household appliances. It is designed according to IEC 60934 standards and holds approvals from VDE, UL, and CCC.
The rated voltage is 240 VAC and 28 VDC.
Operating temperature range is -5°C to 60°C.
The rated current is 2.8 A.
Conditional short circuit capacity (Inc) is 1 kA at 240 VAC. Icn depends on In: <7 A derated to 8xIn; ≥7 A rated 200 A. At 28 VDC short circuit capacity is 400 A.
It is approved per CSA C22.2 No 235, EN 60934, GB 17701, IEC 60934, and UL1077.
Panel mount.
It uses a push-to-reset actuator.
