| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| SVHC Present | |
| Voltage Rating | |
| Weight |

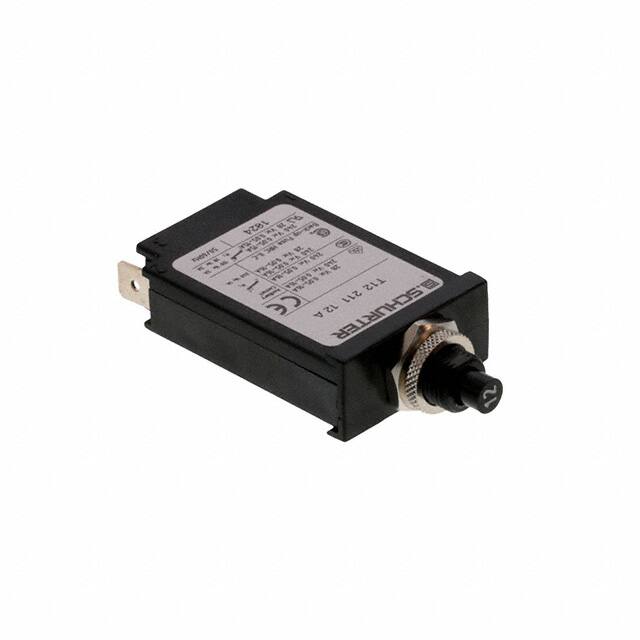

The Schurter Inc. 4410.0019 is a thermal circuit breaker from the T12-211 series, designed for reliable circuit protection in various applications. This 1-pole breaker features a threaded neck type and quick connect terminals (6.3 x 0.8 mm) for easy installation.
Key electrical specifications include a rated voltage of 240 VAC and 28 VDC, with a rated current range of 0.05 to 15/16 A. It offers a conditional short circuit capacity of 1 kA at 240 VAC and a short circuit capacity Icn of 8 x In for currents below 7A and 200A for currents 7A and above at 240 VAC. The device is designed for a maximum of 400A at 28V AC/DC.
With a thermal tripping type and push-to-reset actuation, the 4410.0019 operates within an allowable temperature range of -5 °C to 60 °C. It meets IEC 60934 standards and has an IP40 degree of protection on the front side. The compact design and positively trip-free release are notable features.
This circuit breaker is suitable for applications such as power supplies, uninterruptible power supplies, power tools, and household appliances. It is designed for panel mounting, offering different mounting possibilities and an option for a cover.
The breaker is rated for 240 VAC and 28 VDC.
The allowable operation temperature is -5°C to 60°C.
The current rating is 12A.
The tripping type is thermal.
Panel mount.
IP40 on the front side according to IEC 60529.
