| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Rated Current | |
| SVHC Present | |
| Termination Style | |
| Voltage Rating | |
| Weight |

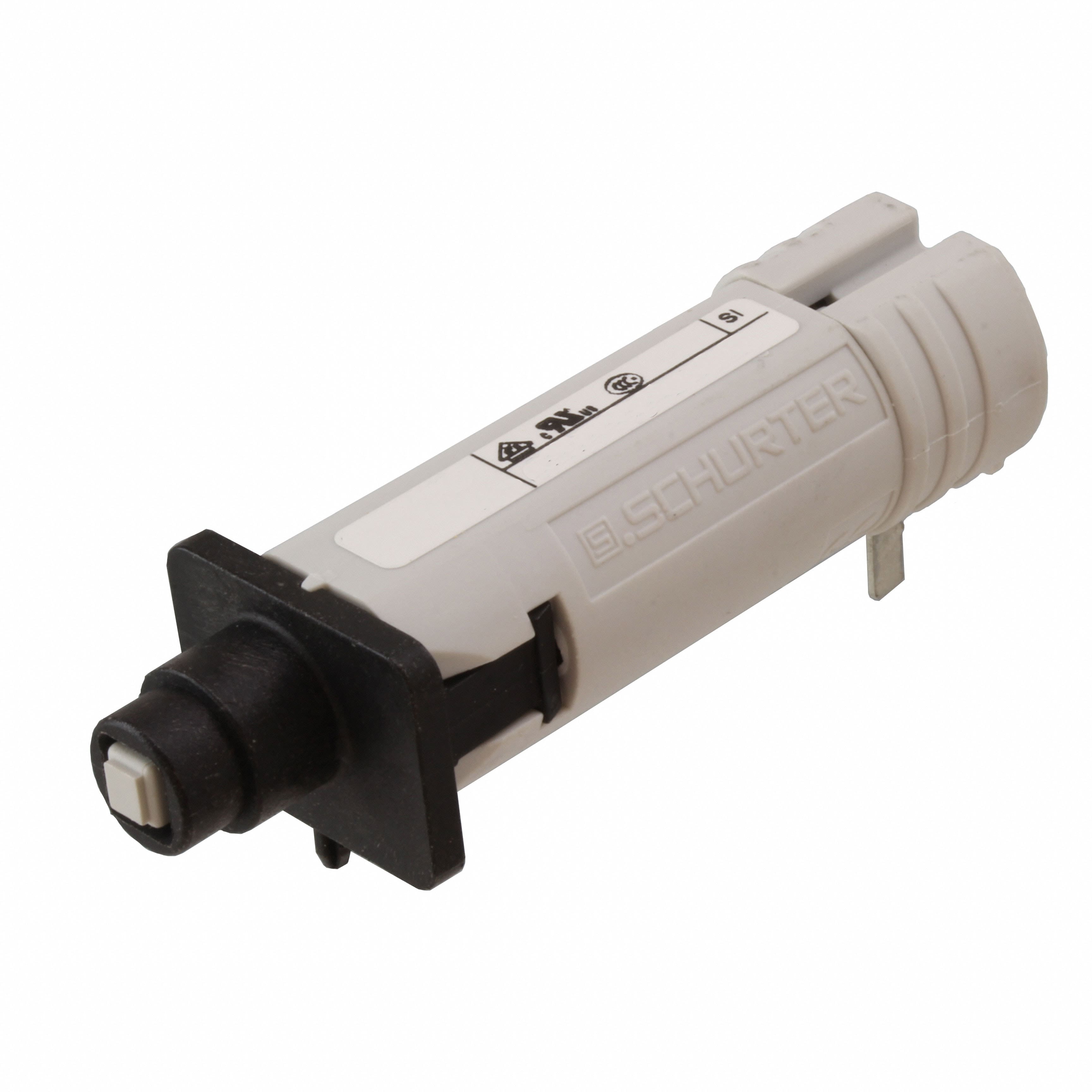

The Schurter Inc. 4404.0098 is a thermal circuit breaker designed for equipment protection. This 1-pole device features THT terminals for PCB mounting and a push-to-reset actuator.
Key electrical specifications include a rated voltage of 240 VAC and a rated current of 5A. It offers a conditional short circuit capacity of 2 kA under various conditions (IEC, UL/CSA). The breaker is designed for endurance, with typical switching cycles ranging from 2500 to 6000 depending on the current rating.
Environmental and mechanical considerations include a degree of protection of IP40 on the front side and an operating temperature range of -5 °C to 60 °C for most current ratings. The device is suitable for wave soldering processes.
Applications for this circuit breaker include power supplies, uninterruptible power supplies, power tools, industrial appliances, HVAC systems, and household appliances.
The rated voltage is 240 VAC and 48/32 VDC.
Through hole mounting with THT termination.
For the 5A variant, -5°C to 60°C.
5A.
CSA C22.2 No 235, EN 60934, GB 17701, IEC 60934, UL1077.
Push to Reset.
