| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating (Amps) | |
| Industrial Grade | |
| Lead Style | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Storage Temperature | |
| Termination Style | |
| Voltage Rating |

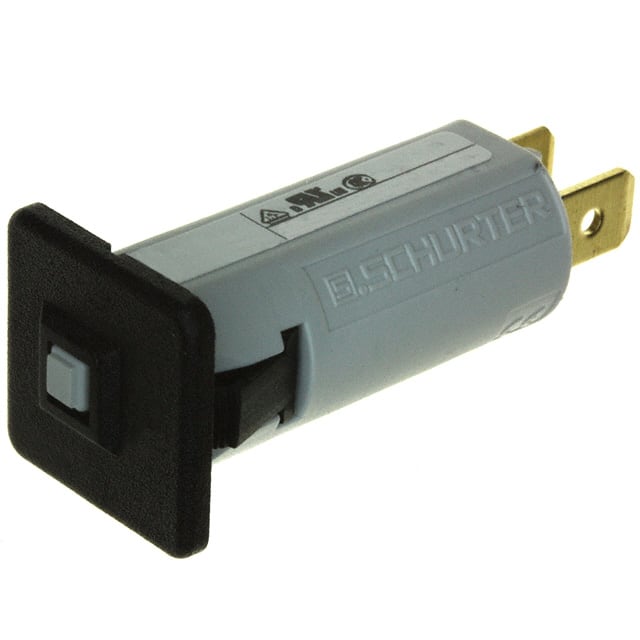

The Schurter 4404.0004 is a single-pole thermal circuit breaker from the T9-611 series, designed for equipment protection. It is rated for 10A continuous current and can interrupt up to 240VAC or 48VDC. The breaker features a push-to-reset actuator and a cycling trip-free release mechanism, ensuring reliable overcurrent protection.
This circuit breaker uses a snap-in panel mount (panel thickness 0.8-2.0mm) and quick connect terminals (6.3 x 0.8mm). It has a dielectric strength of 1500VAC and insulation resistance greater than 1000 Mohm at 500VDC. The front side is protected to IP40. Operating temperature range is -5°C to 60°C at 10A.
The 4404.0004 carries approvals from CSA, EN, GB, IEC, and UL, making it suitable for industrial, HVAC, power supply, and household appliance applications. Weight is 9-13 grams.
The current rating is 10A.
It is rated for 240VAC and 48VDC.
The operating temperature range is -5°C to 60°C at 10A.
RoHS status is reported as compliant (RoHS3), but this is unverified.
It uses a push-to-reset actuator.
It is approved by CSA C22.2 No 235, EN 60934, GB 17701, IEC 60934, and UL1077.
It is a snap-in panel mount with front side insertion for panel thickness 0.8-2.0mm.
