| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
118,000 pcs
|
118000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
19 pcs
|
19 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

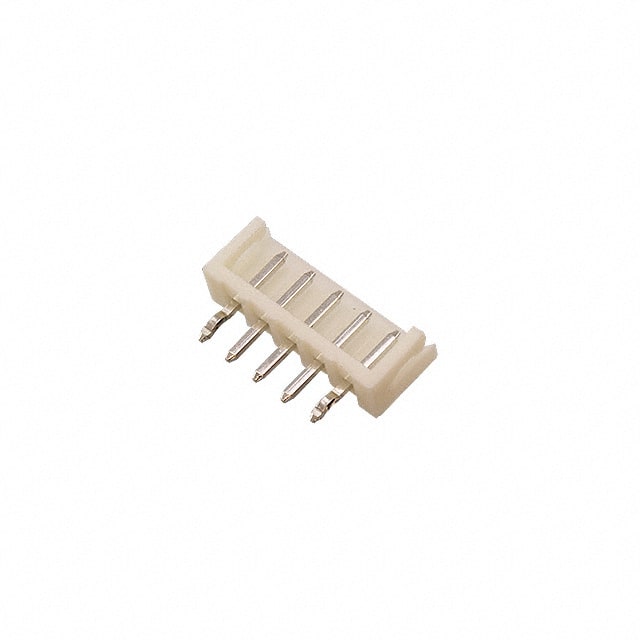

The TE Connectivity 440052-5 is a 5-position, single-row, through-hole header male pin connector with a 2.5mm pitch. It features a shrouded 3-wall housing with a friction lock fastening system for secure mating. The contacts are made of brass with a tin finish (80.0µin or 2.03µm thickness) and are square in shape. Each contact has a length of 3.45mm and an overall contact length of 8.51mm. The insulation is made of natural thermoplastic with a UL94 V-0 flammability rating and an insulation height of 6.00mm.
This connector is rated for 3A current and 250V voltage, with an operating temperature range of -25°C to 85°C. It supports both press-fit and solder termination methods. The header is designed for board-to-cable/wire applications, making it suitable for power and signal distribution in various electronic assemblies.
Through-hole mounting provides robust mechanical attachment to the PCB. The friction lock ensures reliable connection under vibration. The 2.5mm pitch allows for compact board layouts. This connector is commonly used in industrial equipment, consumer electronics, automotive interior modules, and appliance control boards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.10 | $0.10 |
| 10+ | $0.08 | $0.08 |
| 25+ | $0.08 | $0.08 |
| 100+ | $0.07 | $0.07 |
| 250+ | $0.06 | $0.06 |
| 1,000+ | $0.05 | $0.05 |
| 2,500+ | $0.05 | $0.05 |
| 5,000+ | $0.05 | $0.05 |
| 10,000+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5 positions
2.5 mm
3 A
250 V
Through Hole
-25°C to 85°C
Tin with a thickness of 2.03 µm (80.0µin)
