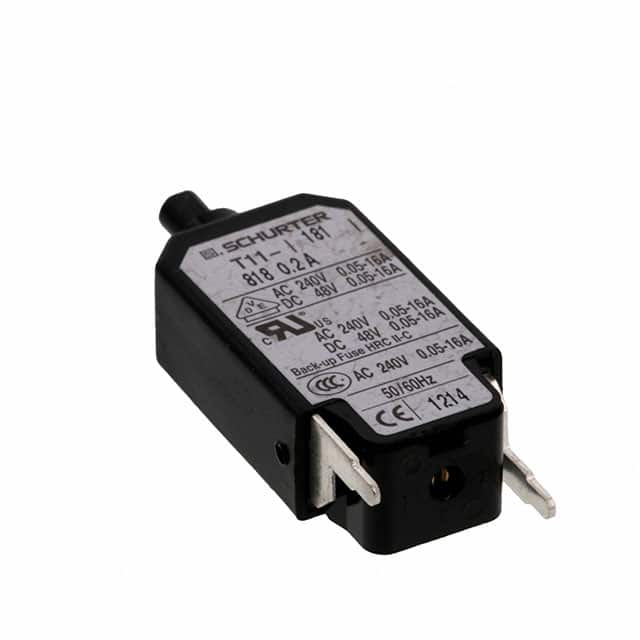

The Schurter Inc. 4400.0148 is a thermal circuit breaker featuring a compact design and a positively trip-free release mechanism. This 1-pole breaker is designed for panel mounting and utilizes quick connect terminals (6.3 x 0.8 mm).
Key electrical specifications include a rated AC voltage of 240 VAC and a rated DC voltage of 48 VDC. The rated current range is from 0.05 A to 16 A, with this specific model rated at 200mA. It offers a conditional short circuit capacity of 2 kA at AC 240 V.
Environmental and mechanical features include a degree of protection of IP40 on the front side, an allowable operating temperature range of -5 °C to 60 °C, and resistance to vibration and shock.
Applications for this type of circuit breaker include power tools, household equipment, power supplies and chargers, and industrial appliances.
The rated voltage is 240 VAC and 48 VDC.
-5°C to 60°C.
200 mA (0.2 A).
Conditional short circuit capacity: 2 kA at 240 VAC (IEC 60934 PC1). Also rated 8 x In (for In < 6.5 A) or 96 A (for In ≥ 6.5 A).
IP40 on the front side according to IEC 60529.
Panel mount.
Approved to CSA C22.2 No 235, EN 60934, GB 17701, IEC 60934, UL1077.
