| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11 pcs
|
11 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Breakaway | |
| Color | |
| Contact Finish - Mating | |
| Contact Finish - Termination | |
| Contact Material | |
| Current Rating (Maximum per Contact) | |
| Durability (Mating Cycles) | |
| Flammability Rating | |
| Glow-Wire Capable | |
| Insulation Material | |
| Low Halogen | |
| Mated Height | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Packaging Type | |
| Pitch | |
| SVHC Present | |
| Tape & Reel | |
| Termination Style | |
| Voltage Rating (Maximum) | |
| Weight |

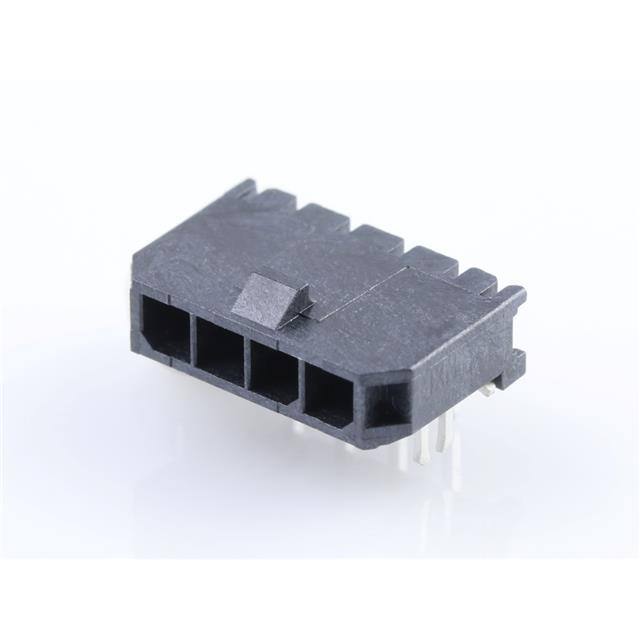

The Molex 43650-0405 is a Micro-Fit 3.0 right-angle header designed for wire-to-board power applications. It features 4 circuits in a single row with a 3.00mm pitch. The header includes a PCB press-fit metal retention clip for secure mounting. Contacts are made of brass with gold plating on the mating area and tin plating on the termination area, ensuring reliable connections. The insulator is high-temperature thermoplastic, rated UL 94V-0, and the part is glow-wire capable per IEC 60335-1. Electrical ratings include 8.5A per contact and 600V maximum voltage. The mated height is 6.98mm. This header is suitable for applications requiring high temperature tolerance and safety compliance.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.71 | $2.71 |
| 10+ | $2.47 | $2.47 |
| 25+ | $2.34 | $2.34 |
| 100+ | $2.18 | $2.18 |
| 280+ | $1.90 | $1.90 |
| 560+ | $1.84 | $1.84 |
| 1,120+ | $1.63 | $1.63 |
| 2,520+ | $1.53 | $1.53 |
| 5,040+ | $1.43 | $1.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 4 circuits (positions) in a single row.
The pitch is 3.00 mm.
The maximum current rating per contact is 8.5 A.
The maximum voltage rating is 600 V.
Yes, it is glow-wire capable per IEC 60695-2-12/13 and complies with IEC 60335-1.
Contacts are made of brass with gold plating on the mating area and tin plating on the termination area.
It is rated for 30 mating cycles maximum.
