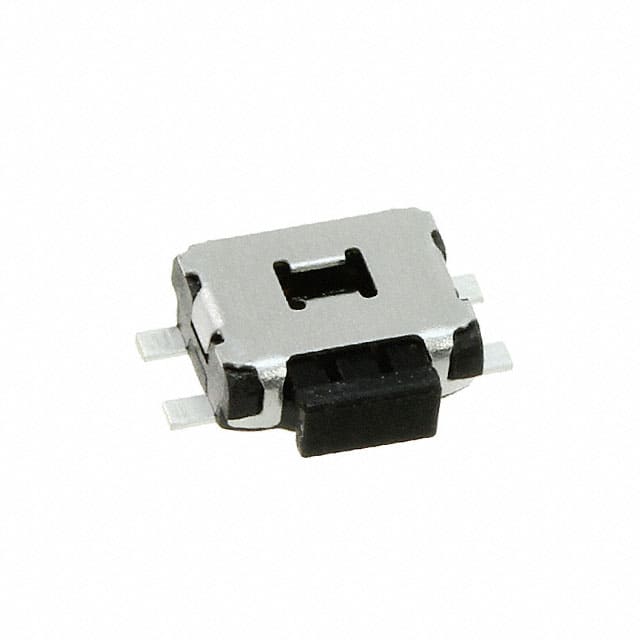

436331045822 The Würth Elektronik 436331045822 is a tactile switch with a Surface Mount, Right Angle mounting type. It features a SPST-NO circuit and is rated for 0.05A at 12VDC.
Mfr Part #:

436331045822

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
The Würth Elektronik 436331045822 is a tactile switch with a Surface Mount, Right Angle mounting type. It features a SPST-NO circuit and is rated for 0.05A at 12VDC.
✓ Total Stock: 8 pcs
$ Price Range: $0.75

436331045822 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
8 pcs
On Request
8 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

436331045822 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Color
Actuator Material
Actuator Orientation
Actuator Type
Circuit
Contact Material
Contact Plating
Contact Rating @ Voltage
Features
Frame Color
Halogen Free
Height
Illumination
Insulation Resistance
Lead Style
Mounting Type
Operating Force
Operating Temperature
Outline
Rated Voltage
Switch Function
Termination Style
Withstanding Voltage
View Similar Products (0)

436331045822 Description

Short technical summary and product information.

This Würth Elektronik tactile switch, part number 436331045822, is designed for surface mount applications with a right-angle orientation. It features a SPST-NO (Single Pole Single Throw Normally Open) circuit configuration.



The switch is rated for a current of 0.05A at 12VDC and has an initial contact resistance of 100 mΩ max. The actuation force is typically 220gf, with a stroke of 0.3mm. It is designed for a long electrical life of 100,000 cycles under specified conditions.



Operating within a temperature range of -40°C to 85°C, this switch is constructed with a stainless steel cover and PA46 for the actuator and frame. The terminals are made of copper alloy with silver plating.



This component is suitable for general electronic equipment and is supplied in a tape and reel format with a polyimide tape material. Its dimensions are 5.50mm x 3.50mm.

436331045822 Quick Information

Product Type: Tactile Switch
Canonical Name: Würth Elektronik WS-TASU SMT Tact Switch
Subcategory: Tactile Switch

436331045822 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

436331045822 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

436331045822 Features

  • SPST-NO circuit configuration.
  • Rated for 0.05A at 12VDC.
  • Surface Mount, Right Angle mounting.
  • Operates from -40°C to 85°C.
  • Compact 5.50mm x 3.50mm outline.

436331045822 Applications

  • Suitable for general electronic equipment switching.
  • Used in control panels and user interfaces.
  • Ideal for low-current circuit activation.
  • Applicable in consumer electronics devices.
  • Suitable for PCB mounting in compact designs.

436331045822 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the rated current and voltage for this tactile switch?

The rated current is 0.05A and the rated voltage is 12VDC.

What is the operating temperature range of the 436331045822 switch?

This switch operates in a temperature range of -40°C to 85°C.

What is the actuation force required for this tactile switch?

The actuation force is typically 220gf.

What is the electrical life expectancy of this switch?

The electrical life is rated for 100,000 cycles at 50mA/12VDC.

Is this Würth Elektronik tactile switch RoHS compliant?

Yes, this switch is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this component?

The Moisture Sensitivity Level is 1.

What are the dimensions of this tactile switch?

The outline dimensions are 5.50mm x 3.50mm.
