| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Color | |
| Actuator Flammability Rating | |
| Actuator Height off PCB, Vertical | |
| Actuator Material | |
| Actuator Orientation | |
| Actuator Type | |
| Bounce | |
| Circuit | |
| Contact Material | |
| Contact Plating | |
| Contact Rating @ Voltage | |
| Contact Resistance (Maximum @ After life test) | |
| Contact Resistance (Maximum @ Initial) | |
| Cover Material | |
| Electrical Life | |
| Frame Color | |
| Frame Flammability Rating | |
| Frame Material | |
| Halogen Free | |
| Height | |
| Illumination | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Rated Current | |
| Rated Voltage | |
| Storage Temperature | |
| Stroke | |
| Switch Function | |
| Tape & Reel | |
| Tape Material | |
| Terminal Material | |
| Terminal Plating | |
| Termination Style | |
| Withstanding Voltage |

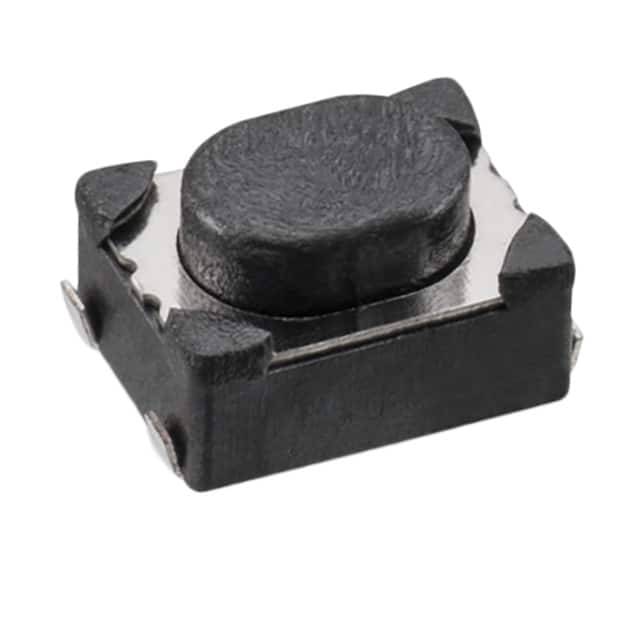

This Würth Elektronik 434133025816 is a surface mount tactile switch designed for general electronic equipment. It has an outline of 4.20mm x 3.20mm and a vertical height of 2.50mm off the PCB. The switch features a J-lead termination style and a top-actuated oval button.
Electrically, it operates with a rated current of 50 mA at 16 VDC, with an initial contact resistance of 500 mΩ maximum. The insulation resistance is a minimum of 100 MΩ at 500 VDC. Mechanically, it requires an operating force of 160g ±50g and has an electrical life of 100,000 cycles.
The operating temperature range is from -40°C to +85°C. The materials include a stainless steel cover, LCP actuator and frame, and silver-plated copper alloy terminals. The actuator and frame have a flammability rating of UL94 V-0. This component is supplied on tape and reel and is classified as Moisture Sensitivity Level 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to +85°C.
The switch is rated for 16 V (DC) and 50 mA.
The operating force is 160g ±50g.
The switch has an outline of 4.20mm x 3.20mm and a height of 2.50mm.
Yes, this switch is RoHS3 Compliant.
The Moisture Sensitivity Level is 1.
