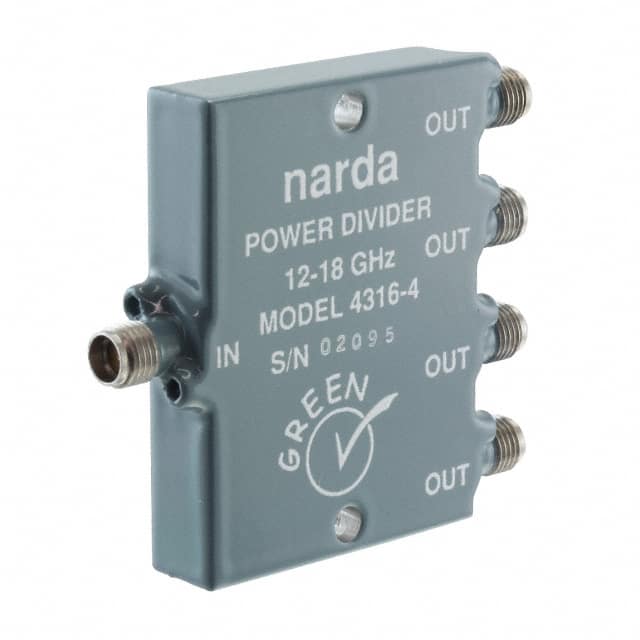

4316-4 The L3 Narda-MITEQ 4316-4 is an RF power divider module operating from 12 GHz to 18 GHz. It features a maximum insertion loss of 1.5 dB and a minimum isolation of 18 dB.
Mfr Part #:

4316-4

Available from 1 distributors
Mfr Name: L3 Narda-MITEQ
L3 Narda-MITEQ
The L3 Narda-MITEQ 4316-4 is an RF power divider module operating from 12 GHz to 18 GHz. It features a maximum insertion loss of 1.5 dB and a minimum isolation of 18 dB.
✓ Total Stock: 7 pcs
$ Price Range: $0.99

4316-4 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
7 pcs
On Request
7 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

4316-4 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Approval Agency
Automotive Grade
Frequency
Frequency Range
Height
Industrial Grade
Insertion Loss
Isolation
Lead Spacing
Length
Medical Grade
Military Grade
Specifications
Storage Temperature
Tape & Reel
Width
View Similar Products (0)

4316-4 Description

Short technical summary and product information.

This RF power divider module, model 4316-4 from L3 Narda-MITEQ, is designed for applications requiring signal division within the 12 GHz to 18 GHz frequency range.



Key electrical specifications include a maximum insertion loss of 1.5 dB and a minimum isolation of 18 dB. The module can handle an average power of 30 W. It operates within a temperature range of -55°C to +85°C.



The device has a module package type and measures 36.01mm in length, 49.27mm in width, and 9.64mm in height. It is specified with an input VSWR of 1.5:1 and an output VSWR of 1.4:1. The amplitude balance is a maximum of 0.5 dB, and the phase balance is a maximum of 6°.



Compliance information indicates RoHS3 compliance, MSL 1, and REACH unaffected status. This component is suitable for various RF systems where precise power division is critical.

4316-4 Quick Information

Product Type: RF Power Divider Module
Canonical Name: 4316-4 RF Power Divider Module
Subcategory: Module

4316-4 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

4316-4 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

4316-4 Features

  • Operates from 12 GHz to 18 GHz.
  • Maximum insertion loss is 1.5 dB.
  • Minimum isolation is 18 dB.
  • Handles 30W average power.
  • Module package for integration.

4316-4 Applications

  • Used in RF signal distribution.
  • Suitable for microwave systems.
  • Ideal for test and measurement.
  • Applicable in communication systems.

4316-4 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the frequency range of the 4316-4 power divider?

The 4316-4 power divider operates from 12 GHz to 18 GHz.

What is the maximum insertion loss for the 4316-4?

The maximum insertion loss for the 4316-4 is 1.5 dB.

What is the minimum isolation of the 4316-4 power divider?

The minimum isolation for the 4316-4 power divider is 18 dB.

What is the average power rating of the 4316-4?

The 4316-4 has an average power rating of 30 W.

What is the operating temperature range for the 4316-4?

The operational temperature range for the 4316-4 is -55°C to +85°C.

What are the dimensions of the 4316-4 module?

The dimensions of the 4316-4 module are 36.01mm in length, 49.27mm in width, and 9.64mm in height.
