| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
491 pcs
|
491 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuation Force | |
| Actuator Flammability Rating | |
| Actuator Length, Right Angle | |
| Actuator Material | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Plating | |
| Contact Rating @ Voltage | |
| Current Rating (Max) | |
| Electrical Life | |
| Features | |
| Frame Flammability Rating | |
| Frame Material | |
| Height | |
| Illumination | |
| Initial Contact Resistance | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Switch Function | |
| Terminal Plating | |
| Termination Style | |
| Voltage Rating | |
| Withstanding Voltage |

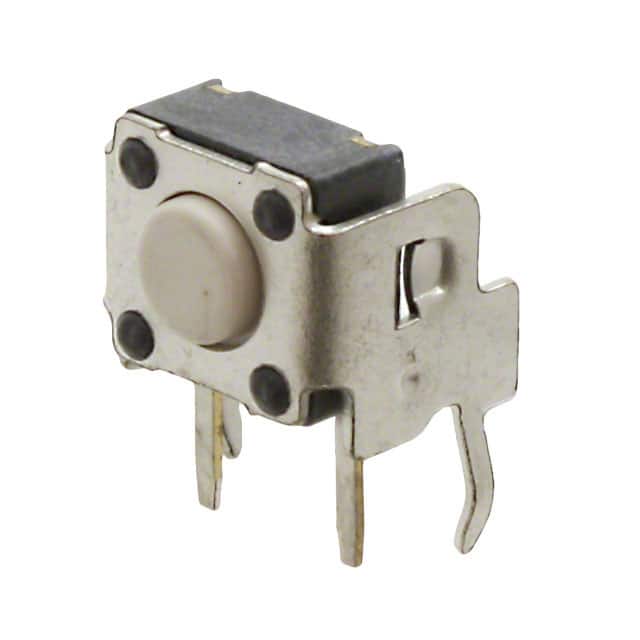

This Würth Elektronik tactile switch, part number 431256031716, is designed for applications requiring a momentary action (Off-Mom) with a Single Pole Single Throw Normally Open (SPST-NO) configuration. It is rated for a current of 0.05A at 12VDC and has an initial contact resistance of 100 mΩ.
The switch features a through-hole, right-angle mounting type and a side-actuated actuator. The actuator is made of LCP with a UL94 V-0 flammability rating, and the frame is PPA, also with a UL94 V-0 rating. The contact and terminal plating is silver.
With an operating force of 160gf and an electrical life of 200,000 cycles, this non-illuminated tactile switch is suitable for various electronic designs. It operates within a temperature range of -40°C to +85°C and includes a grounding pin for added functionality. The dimensions are 7.40mm x 6.55mm with an actuator length of 3.15mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 12VDC.
The actuation force is 160gf.
The electrical life is 200,000 cycles.
The operating temperature range is -40°C to +85°C.
It uses through-hole, right-angle mounting.
