| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Inductance | |
| Lead Style | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Shielding | |
| Tolerance | |
| Type |

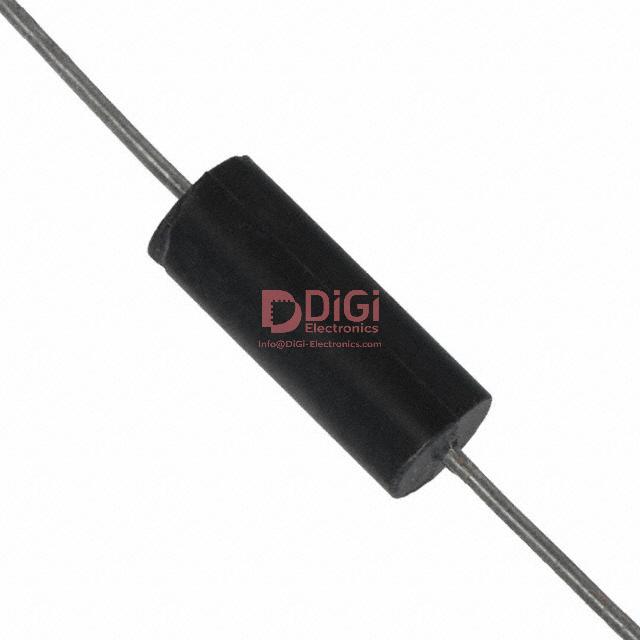

The API Delevan 4307-186K is a shielded molded fixed inductor designed for through-hole mounting in an axial package. It features an inductance of 18 mH with ±10% tolerance and a nominal self-resonant frequency of 550 kHz. The component is rated for a continuous current of 41 mA and has a maximum DC resistance of 225 Ohms.
The inductor is constructed with a ferrite core and is fully shielded to minimize electromagnetic interference. Operating temperature range spans -55°C to 125°C, suitable for a wide variety of environments. The Q factor is specified as 30 at 79 kHz test frequency, and saturation current is rated at 10 mA.
The physical dimensions are 0.197 inches in diameter and 0.447 inches in length (5.00 mm x 11.35 mm). This component is RoHS3 compliant and unaffected by REACH, with MSL 1 (unlimited floor life). It is suitable for use in power supply filtering, signal conditioning, and general-purpose inductance applications where moderate current and high inductance values are required.
The inductance is 18 mH with a tolerance of ±10%.
The continuous current rating is 41 mA.
The maximum DC resistance is 225 Ohms.
The self-resonant frequency is 550 kHz.
The package is axial, designed for through-hole mounting.
Yes, the inductor is shielded.
The operating temperature range is -55°C to 125°C.
