4305.0048.05
Schurter Inc.
Voltage selector insert for Schurter power entry modules types CE, CG, KE, KG. Features up to 4 switch positions and drop-in mounting.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
18 pcs
|
18 pcs | On Request | 1 | On Request | On Request | 04+11 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| For Use With | |
| Mounting Type |

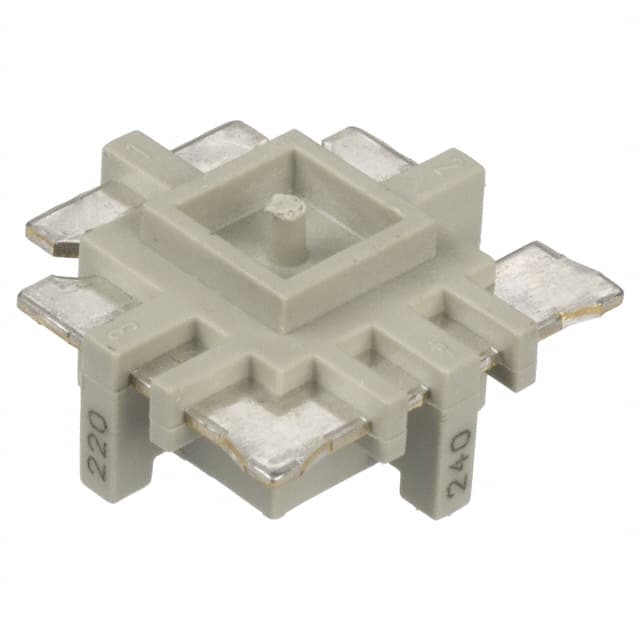

This voltage selector insert from Schurter (part number 4305.0048.01) is a drop-in accessory designed for use with power entry modules of types CE, CG, CG-Bowdencable, KE, KG, and KG-Bowdencable. It provides up to four different switch positions, typically configured as 3 or 4 positions, allowing voltage selection in power entry applications.
The insert mounts via drop-in installation and is approved together with the power entry module. It complies with product standard IEC 60127-6 for miniature fuse-holders and is suitable for applications meeting IEC/UL 62368-1 (audio/video, information and communication technology equipment) and IEC 60601-1 (medical electrical equipment).
Environmental compliance includes RoHS3 (Directive 2011/65/EU) and REACH unaffected status. The component is rated with MSL Level 1 (unlimited moisture sensitivity). No electrical ratings are specified as this is a mechanical switching accessory.
| Qty | Low | High |
|---|---|---|
| 1+ | $12.59 | $12.59 |
| 10+ | $9.99 | $9.99 |
| 20+ | $9.53 | $9.53 |
| 50+ | $9.34 | $9.34 |
| 100+ | $8.89 | $8.89 |
| 200+ | $8.35 | $8.35 |
| 500+ | $8.26 | $8.26 |
| 1,000+ | $7.85 | $7.85 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Drop-in mounting.
3 or 4 positions.
CE, CG, CG-Bowdencable, KE, KG, KG-Bowdencable.
IEC 60127-6 (Miniature fuses - Part 6: Fuse-holders for miniature fuse-links).
IEC/UL 62368-1 (Audio/video, information and communication technology equipment) and IEC 60601-1 (Medical electrical equipment).
Yes, RoHS3 compliant (Directive 2011/65/EU).
Yes, REACH unaffected (Regulation (EC) No 1907/2006).
