| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Application | |
| Breakaway | |
| Color - Resin | |
| Contact Material | |
| Contact Plating - Mating | |
| Contact Plating - Termination | |
| Durability (mating cycles max) | |
| Flammability Rating | |
| Glow-Wire Capable | |
| Halogen Free | |
| Halogen-Free Status | |
| Lead Spacing | |
| Lead Style | |
| Mates With | |
| Mating Height | |
| Mounting Type | |
| Net Weight | |
| Number of Circuits Loaded | |
| Number of Rows | |
| Orientation | |
| PCB Locator | |
| PCB Retention | |
| PCB Thickness Recommended | |
| Packaging Type | |
| Pitch | |
| Product Name | |
| Resin Material | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Style |

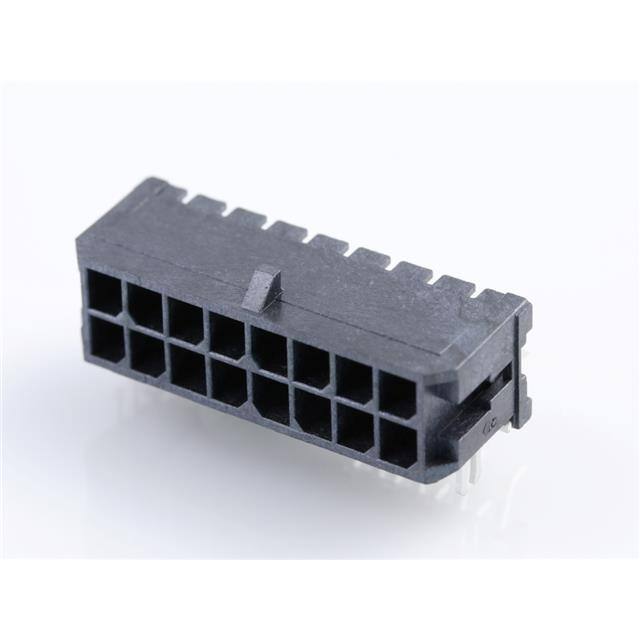

The Molex 43045-1608 is a Micro-Fit 3.0 right-angle header designed for power and wire-to-board applications. It features 16 circuits arranged in a dual row configuration with a 3.00mm pitch. The header is constructed with a high temperature thermoplastic housing rated UL 94V-0 and is glow-wire capable, meeting IEC 60335-1 requirements for household appliances.
Contacts are made of brass with gold plating on the mating area and tin on the termination. The header includes a PCB press-fit metal retention clip and a PCB locator for secure mounting. It mates with Micro-Fit 3.0 receptacle housings (43025 series) and TPA receptacle housings (172952 series). The recommended PCB thickness is 1.60mm and the mating height is 10.29mm.
This through-hole right-angle header is supplied in embossed tape packaging. It is RoHS compliant and REACH unaffected. The part is low-halogen and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.55 | $10.55 |
| 10+ | $9.49 | $9.49 |
| 25+ | $8.94 | $8.94 |
| 50+ | $8.71 | $8.71 |
| 100+ | $8.49 | $8.49 |
| 250+ | $7.57 | $7.57 |
| 500+ | $7.11 | $7.11 |
| 1,000+ | $6.28 | $6.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3.00 mm
16 circuits
Through Hole, Right Angle
1.60 mm
30 mating cycles
94V-0
Yes, RoHS3 Compliant
