| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accomodates a Fuse | |
| Approval Agency | |
| Climatic Category | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Current Rating (IEC) | |
| Current Rating (UL/CSA) | |
| Dielectric Strength (Minimum @ Between L-N) | |
| Dielectric Strength (Minimum @ Between L/N-PE) | |
| Features | |
| Filter Type | |
| Flammability Rating | |
| Fuse Accommodation | |
| Fuse Holder | |
| Fuse Holder Type | |
| Fuse Holder, Drawer | |
| Ingress Protection | |
| Lead Style | |
| Leakage Current (Maximum @ 250 V, 60 Hz, Medical) | |
| Leakage Current (Maximum @ 250 V, 60 Hz, Standard) | |
| MTBF | |
| Material Flammability Rating | |
| Medical Grade | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Panel Cutout Dimensions | |
| Panel Thickness | |
| Power Acceptance (Nominal @ 5 x 20 fuse, 1-pole, @23 °C) | |
| Power Acceptance (Nominal @ 5 x 20 fuse, 2-pole, @23 °C) | |
| Power Acceptance (Nominal @ 6.3 x 32 fuse, 1-pole, @23 °C) | |
| Power Acceptance (Nominal @ 6.3 x 32 fuse, 2-pole, @23 °C) | |
| Protection Class | |
| Terminal Size | |
| Termination | |
| Termination Style | |
| Voltage Rating | |
| Voltage Selector |

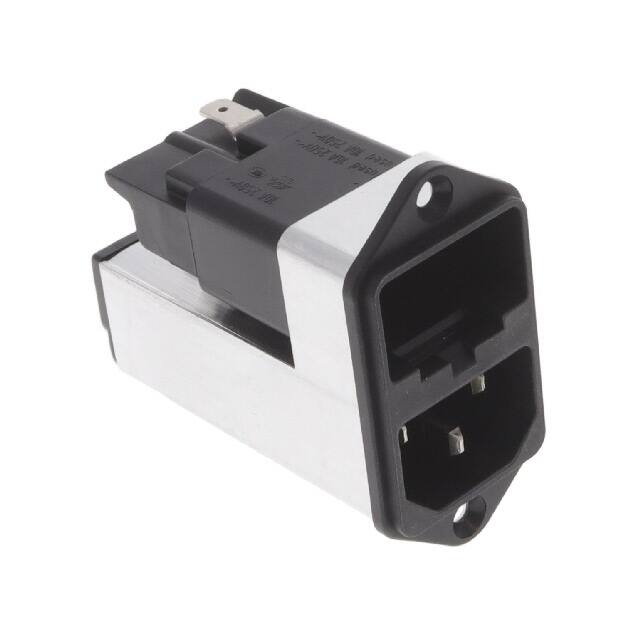

The Schurter 4303.5031 is a KFC series power entry module integrating an IEC 320-C14 appliance inlet, EMI/RFI commercial filter, fuseholder, and optional voltage selector into a single panel-mount unit. It accepts 5x20mm or 6.3x32mm fuses (drawer sold separately) and features a 3-position voltage selector for global voltage compatibility.
Electrical ratings: 1A at 250VAC (IEC and UL/CSA). Leakage current is <0.5mA standard or <5µA medical version. Dielectric strength exceeds 1.7kVDC between L-N and 2.7kVDC between L/N-PE. Operating temperature range is -25°C to 85°C with climatic category 25/085/21.
Mechanical: panel mount with flange, quick connect terminals (4.8x0.8mm), panel cutout 28.60mm x 50.00mm, max panel thickness 8mm. Protection class I, IP40 rated. Fully potted construction for high resistance. V-Lock cord retaining notch available.
Approvals: cULus, ENEC. Compliant with RoHS3 (unverified), REACH unaffected, MSL 1 (unverified). Suitable for use in medical equipment per IEC 60601-1 (1 MOOP/1 MOPP) and IT equipment per IEC 62368-1.
| Qty | Low | High |
|---|---|---|
| 20+ | $38.83 | $38.83 |
| 100+ | $36.89 | $36.89 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1A at 250VAC (IEC and UL/CSA ratings).
250VAC.
Panel mount with flange.
The module accommodates a fuse, but the fuse and fuse drawer are sold separately.
Standard version: <0.5mA at 250V/60Hz; medical version: <5µA at 250V/60Hz.
-25°C to 85°C.
cULus and ENEC approved.
