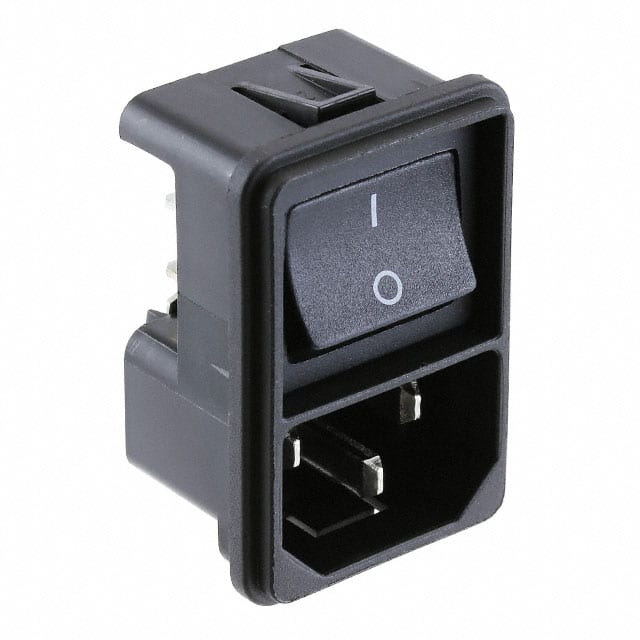

The Schurter 4302.2003 is a power entry module (PEM) combining an IEC 320-C14 appliance inlet with a 2-pole rocker switch, designed for panel mount applications. It is part of the KEB2 series, suitable for protection class I equipment.
Electrical ratings: 10A at 250VAC (IEC 50 Hz) and 15A at 250VAC (UL/CSA 60 Hz). Dielectric strength exceeds 2.5 kVAC between L-N and 3 kVAC between L/N-PE. Operating temperature range -25°C to 70°C.
The module features quick connect terminals (0.189" / 4.8mm) and snap-in panel mounting. Panel cutout is rectangular 27.50mm x 42.00mm, with panel thickness up to 2.00mm. Housing is black thermoplastic rated UL94 V-0. IP40 protection on front side.
This unfiltered version is ideal for applications requiring a switched IEC inlet without line filtering. It has approvals from CCC, CSA, UL, VDE. Note: The manufacturer recommends the DC11 series for new designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $21.50 | $21.50 |
| 10+ | $18.47 | $18.47 |
| 25+ | $17.31 | $17.31 |
| 50+ | $16.48 | $16.48 |
| 100+ | $16.09 | $16.09 |
| 250+ | $15.33 | $15.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions.
10A at 250VAC (IEC 50 Hz) and 15A at 250VAC (UL/CSA 60 Hz).
250VAC (IEC and UL/CSA).
Panel mount, snap-in.
Yes, a 2-pole rocker switch with On-Off function.
-25°C to 70°C.
IP40 on the front side.
