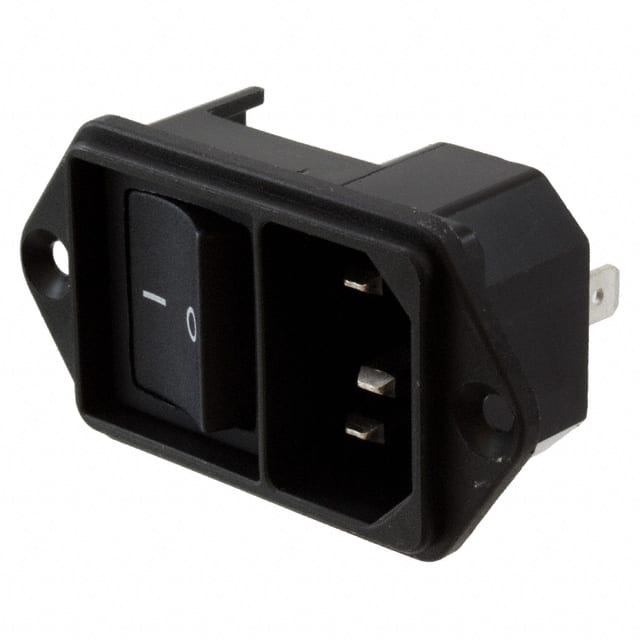

4302.2001 This Schurter 4302.2001 is an IEC 320-C14 power entry module with a 2-pole line switch, rated at 15A UL/CSA and 250 VAC.
Mfr Part #:

4302.2001

Available from 1 distributors
Mfr Name: Schurter Inc.
Schurter Inc.
This Schurter 4302.2001 is an IEC 320-C14 power entry module with a 2-pole line switch, rated at 15A UL/CSA and 250 VAC.
Stock on Request
$ Price Range: $13.51 - $20.41

4302.2001 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
On Request
On Request
On Request On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

4302.2001 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accomodates a Fuse
Approval Agency
Connector Style
Connector Type
Current Rating
Filter Type
Frequency
Housing Material
Industrial Grade
Ingress Protection
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Operating Temperature
Panel Cutout Dimensions
Switch Features
Tape & Reel
Termination
Termination Style
Voltage Rating
View Similar Products (0)

4302.2001 Description

Short technical summary and product information.

The Schurter 4302.2001 is a power entry module combining an IEC 320-C14 appliance inlet with a 2-pole on-off rocker switch, designed for panel mount applications. The unit is rated at 15 A / 250 VAC under UL/CSA and 10 A / 250 VAC under IEC standards, at 50/60 Hz.



Termination is via quick connect tabs (4.8 x 0.8 mm), and the housing is made of black thermoplastic rated UL 94 V-0. The module offers IP40 protection on the front side and is suitable for appliances requiring protection class I per IEC 61140. It can be mounted using screws (max panel thickness 6 mm, torque 0.5 Nm) or snap-in (panel thicknesses 1.5/2/2.5 mm).



This part is unfiltered and does not accommodate a fuse. It carries approvals from CCC, CSA, UL, and VDE.

4302.2001 Quick Information

Product Type: Power Entry Module
Series: KEB2
Canonical Name: IEC 320-C14 Power Entry Module with Line Switch
Subcategory: IEC Appliance Inlet with Line Switch

4302.2001 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

4302.2001 Estimated Pricing

Qty Low High
1+ $20.41 $20.41
10+ $16.38 $16.38
25+ $15.68 $15.68
50+ $14.25 $14.25
100+ $13.99 $13.99
250+ $13.51 $13.51

Estimated market price range - modelled values for guidance only, not live distributor offers.

4302.2001 Features

  • IEC 320-C14 appliance inlet with line switch.
  • Rated 15 A at 250 VAC UL/CSA.
  • Panel mount, screw or snap-in installation.
  • Quick connect terminals 4.8 x 0.8 mm.
  • UL94 V-0 thermoplastic housing.

4302.2001 Applications

  • Ideal for power entry in industrial equipment.
  • Used in medical and test instrumentation.
  • Suitable for IT and telecommunications gear.
  • Applicable for power supplies and UPS systems.

4302.2001 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the current rating of the Schurter 4302.2001?

The current rating is 10 A under IEC and 15 A under UL/CSA at 250 VAC.

What is the voltage rating of the 4302.2001?

The voltage rating is 250 VAC under both IEC and UL/CSA standards.

How is the Schurter 4302.2001 mounted?

The module supports panel mount with either screw-on mounting (max panel thickness 6 mm) or snap-in mounting (panel thickness 1.5/2/2.5 mm).

Does the 4302.2001 include a line switch?

Yes, the module includes a two-pole rocker on-off switch.

What is the operating temperature range?

The operating temperature range is -25 °C to 70 °C.
