| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
295 pcs
|
295 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Height off PCB, Vertical | |
| Actuator Orientation | |
| Actuator Type | |
| Bounce | |
| Circuit | |
| Contact Rating @ Voltage | |
| Contact Resistance (Maximum) | |
| Dielectric Strength | |
| Electrical Life | |
| Illumination | |
| Insulation Resistance | |
| Lead Spacing | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Storage Temperature | |
| Stroke | |
| Switch Function | |
| Tape & Reel | |
| Termination Style |

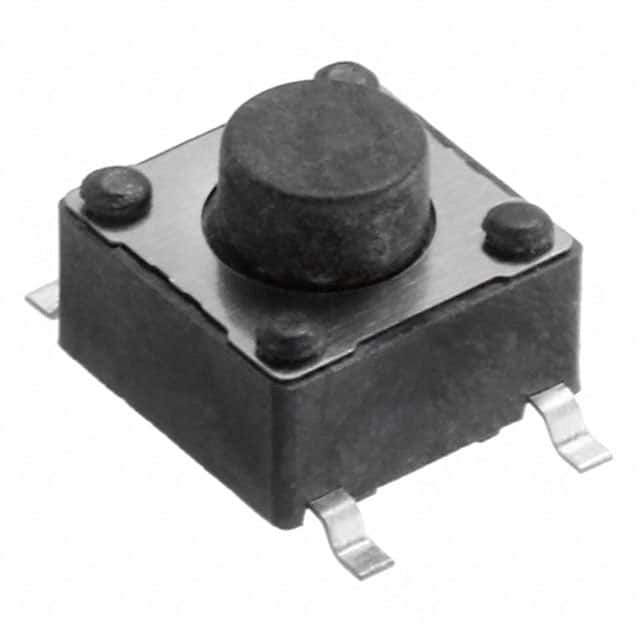

The Würth Elektronik 430182050816 is a surface-mount tactile switch from the WS-TASV series. It is designed for general electronics applications and features a standard actuator type with a height of 5.00mm above the PCB. The switch has a SPST-NO (Single Pole Single Throw Normally Open) circuit configuration and is rated for 0.05A at 12VDC.
Key electrical characteristics include an initial contact resistance of 100mOHM max and an insulation resistance of 100MOHM min at 500VDC. The dielectric strength is 250VAC for 1 minute. Mechanically, it offers a stroke of 0.25 ± 0.15mm and a bounce time of 10ms max. The operating force is specified at 160gf.
This tactile switch operates within a temperature range of -40°C to +85°C and is compliant with RoHS3 standards. It is supplied in a Tape & Reel package, suitable for automated assembly processes. The termination style is Gull Wing, ensuring secure mounting on PCBs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The switch is rated for 0.05A at 12VDC.
The operating temperature range is -40°C to +85°C.
The operating force is 160gf.
The actuator height is 5.00mm.
This component is RoHS3 Compliant.
