| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
167 pcs
|
167 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Height off PCB, Vertical | |
| Actuator Orientation | |
| Actuator Type | |
| Bounce | |
| Circuit | |
| Contact Rating @ Voltage | |
| Contact Resistance (Maximum @ After life test) | |
| Contact Resistance (Maximum @ Initial) | |
| Dielectric Strength | |
| Illumination | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Rating | |
| Storage Condition | |
| Stroke | |
| Switch Function | |
| Tape & Reel | |
| Termination Style |

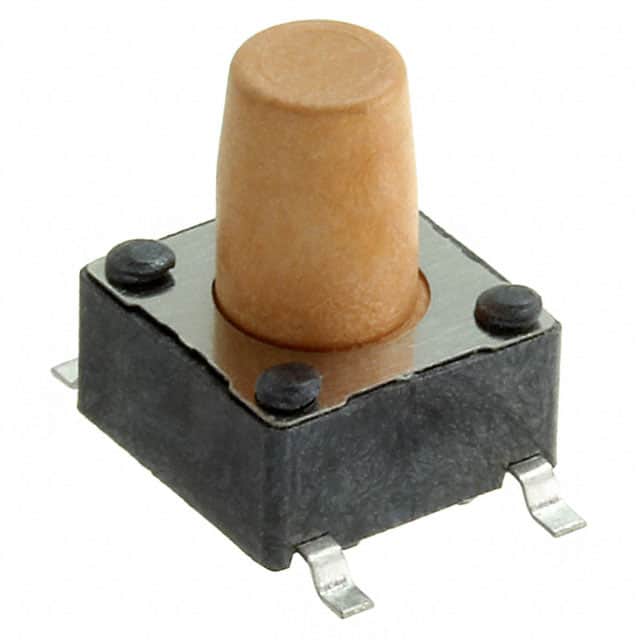

The Würth Elektronik 430152080836 is a tactile switch designed for general electronics equipment. It features a SPST-NO (Single Pole Single Throw Normally Open) circuit configuration and operates momentarily (Off-Mom).
This switch has an electrical rating of 0.05A at 12VDC. Key mechanical specifications include an operating force of 360gf, a stroke of 0.25 ± 0.15mm, and a bounce time of 10ms maximum. The actuator height off the PCB is 8.00mm, and the overall dimensions are 6.20mm x 6.20mm.
Environmentally, the switch operates within a temperature range of -40°C to +85°C and has a storage condition of the same range. It is compliant with RoHS3 standards and is classified as Lead Free. The MSL is 1 (Unlimited), and REACH status is Unaffected.
The mounting type is Surface Mount with a Gull Wing termination style. It is supplied in Tape & Reel packaging. This component is non-illuminated and features a standard top-actuated actuator.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This tactile switch has a rating of 0.05A at 12VDC.
The operating force for this switch is 360gf.
The operating and storage temperature range for this component is -40°C to +85°C.
Yes, this switch is RoHS3 Compliant and Lead Free.
This switch uses Surface Mount with Gull Wing termination.
The dimensions of this tactile switch are 6.20mm x 6.20mm.
