| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
724 pcs
|
724 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Height off PCB, Vertical | |
| Actuator Orientation | |
| Actuator Type | |
| Bounce | |
| Circuit | |
| Contact Rating @ Voltage | |
| Contact Resistance (Maximum @ After life test) | |
| Contact Resistance (Maximum @ Initial) | |
| Dielectric Strength | |
| Illumination | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Rating | |
| Storage Temperature | |
| Stroke | |
| Switch Function | |
| Termination Style |

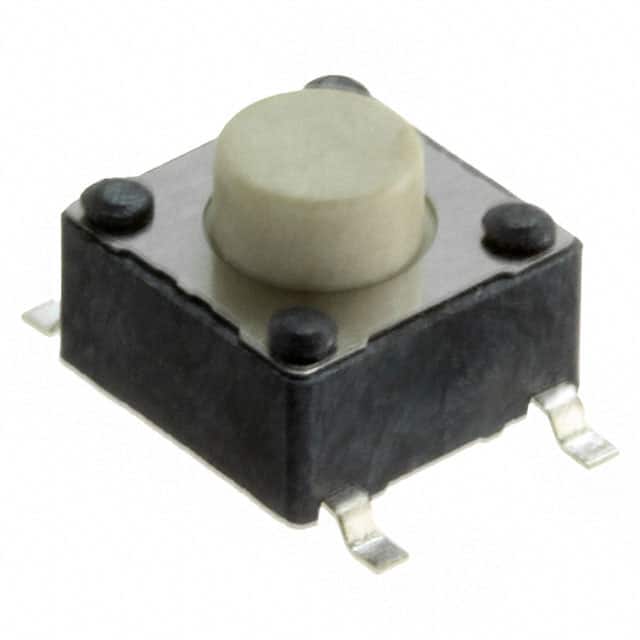

The Würth Elektronik 430152050826 is a tactile switch designed for surface mount applications with a gull wing termination style. It operates with a SPST-NO circuit configuration and is rated for 0.05A at 12VDC.
Key electrical characteristics include a contact resistance of 100mOHM max. initially and 2OHM max. after life testing, with an insulation resistance of at least 100MOHM at 500VDC. The switch has a dielectric strength of 250VAC for 1 minute.
Mechanically, it features a standard actuator type with top actuation and a stroke of 0.25 ± 0.15mm. The switch dimensions are 6.20mm x 6.20mm, with an actuator height of 5.00mm off the PCB. The operating force is 260gf.
Environmental specifications include an operating temperature range of -40°C to 85°C and a storage temperature range of -40°C to 85°C. The component is supplied in Tape & Reel packaging.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 12 VDC.
The operating current rating is 0.05 A.
Initial contact resistance is 100mOHM max., and after life test it is 2OHM max.
The insulation resistance is a minimum of 100MOHM at 500VDC.
The dielectric strength is 250 VAC for 1 minute.
The stroke is 0.25 ± 0.15mm.
The bounce time is 10ms max.
The operating force is 260gf.
The outline dimensions are 6.20mm x 6.20mm.
The operating temperature range is -40°C to 85°C.
The circuit configuration is SPST-NO.
The switch function is Off-Mom.
No, this switch is Non-Illuminated.
