| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Height off PCB, Vertical | |
| Actuator Orientation | |
| Actuator Type | |
| Bounce | |
| Circuit | |
| Contact | |
| Contact Rating @ Voltage | |
| Contact Resistance (Maximum @ After life test) | |
| Contact Resistance (Maximum @ Initial) | |
| Cover | |
| Dielectric Strength | |
| Frame | |
| Illumination | |
| Insulation Resistance | |
| Lead Spacing | |
| Life Cycle | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Operating Temperature (Nominal) | |
| Outline | |
| Rating | |
| Stem | |
| Storage Temperature | |
| Storage Temperature (Nominal) | |
| Stroke | |
| Switch Function | |
| Tape & Reel | |
| Terminal | |
| Termination Style |

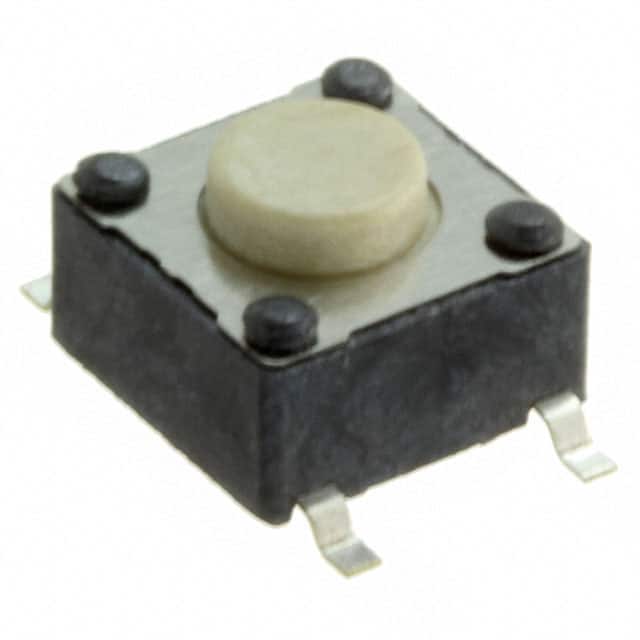

This Würth Elektronik 430152043826 is a tactile switch with a rating of 50mA at 12VDC. It is designed for surface mount (SMD) applications with a gull wing termination style.
The switch has an operating force of 260gf and a stroke of 0.25 ± 0.15mm. The contact resistance is a maximum of 100mOHM initially and 2 OHM after life testing. Insulation resistance is a minimum of 100MOHM at 500VDC, and dielectric strength is 250VAC for 1 minute. The bounce time is a maximum of 10ms.
Constructed with a stainless steel cover, LCP UL 94V-0 stem and frame, and stainless steel contacts with silver plating, this tactile switch is built for durability. The terminals are brass with silver plating. It operates within a temperature range of -40°C to 85°C and has a rated life cycle of 200,000 cycles.
The dimensions of the switch are 6.20mm x 6.20mm, with an actuator height of 4.30mm off the PCB. It is supplied in tape and reel packaging.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 12 VDC.
The current rating is 0.05A.
The initial contact resistance is a maximum of 100 milliohms.
The stroke is 0.25 ± 0.15mm.
-40°C to 85°C.
Yes, it is RoHS3 compliant.
