| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
149 pcs
|
149 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
19 pcs
|
19 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accommodates a Fuse | |
| Accomodates a Fuse | |
| Approval Agency | |
| Capacitance (CX) | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Dielectric Strength (Minimum @ Between L-N) | |
| Dielectric Strength (Minimum @ Between L/N-PE) | |
| Filter Type | |
| Fuse Holder, Drawer | |
| Fuseholder Type | |
| Ingress Protection | |
| MTBF | |
| Material Flammability Rating | |
| Medical Grade | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Panel Cutout Dimensions | |
| Panel Thickness | |
| Protection Class | |
| Termination | |
| Voltage Rating | |
| current_rating (Maximum @ IEC @ Ta 40 °C) | |
| current_rating (Maximum @ UL/CSA @ Ta 40 °C) | |
| leakage_current (Maximum @ Medical, 250 V / 60 Hz) | |
| leakage_current (Maximum @ Standard, 250 V / 60 Hz) |

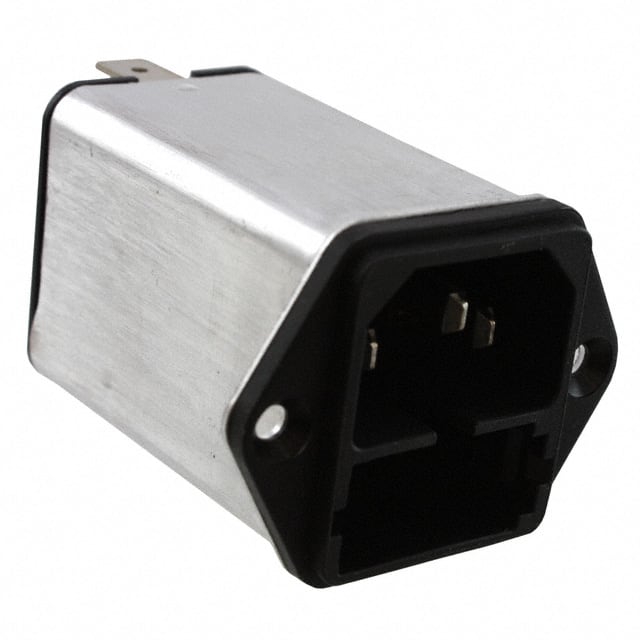

The Schurter 4301.5013 is a filtered IEC 320-C14 power entry module from the KFA series. It integrates a panel-mount receptacle, EMI/RFI filter, and a fuseholder for 5x20mm fuses (1- or 2-pole, drawer sold separately). The connector is rated for 10A maximum at 250VAC (IEC and UL/CSA). It features a panel mount with flange mounting and quick connect 0.250" (6.3mm) terminals. The ingress protection rating is IP40 on the front side. The module operates over a temperature range of -25°C to 85°C.
An EMI/RFI commercial line filter with standard leakage current <0.5mA (medical version <5µA) is incorporated. Dielectric strength is >1.7kVDC between L-N and >2.7kVDC between L/N-PE. Capacitance CX is 100nF. The module is suitable for protection class I applications per IEC 61140.
Approvals include CCC, cULus, and ENEC. The part is RoHS3 and REACH unaffected compliant (unverified). MSL is 1. The fuse holder drawer is sold separately. The manufacturer also offers a medical-grade variant with low leakage current suitable for IEC/UL 60601-1 applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $37.71 | $37.71 |
| 10+ | $30.25 | $30.25 |
| 50+ | $28.41 | $28.41 |
| 100+ | $27.00 | $27.00 |
| 200+ | $26.62 | $26.62 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions.
10A maximum (IEC and UL/CSA @ 40°C).
250VAC.
Panel mount, flange.
IP40 (front side).
Yes, it accommodates a fuse (fuse not included; drawer sold separately).
CCC, cULus, ENEC.
