| Category | |
| Manufacturer Name | |
| Accommodates a Fuse | |
| Accomodates a Fuse | |
| Approval Agency | |
| Climatic Category | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Dielectric Strength (Minimum @ L-N) | |
| Dielectric Strength (Minimum @ L/N-PE) | |
| Filter Type | |
| Fuse Holder, Drawer | |
| Fuseholder Type | |
| Ingress Protection | |
| MTBF | |
| Material Flammability Rating | |
| Medical Grade | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature Range | |
| Panel Cutout Dimensions | |
| Panel Thickness (Screw-on) | |
| Protection Class | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Voltage Rating | |
| leakage_current (Maximum @ Medical, 250 V / 60 Hz) | |
| leakage_current (Maximum @ Standard, 250 V / 60 Hz) |

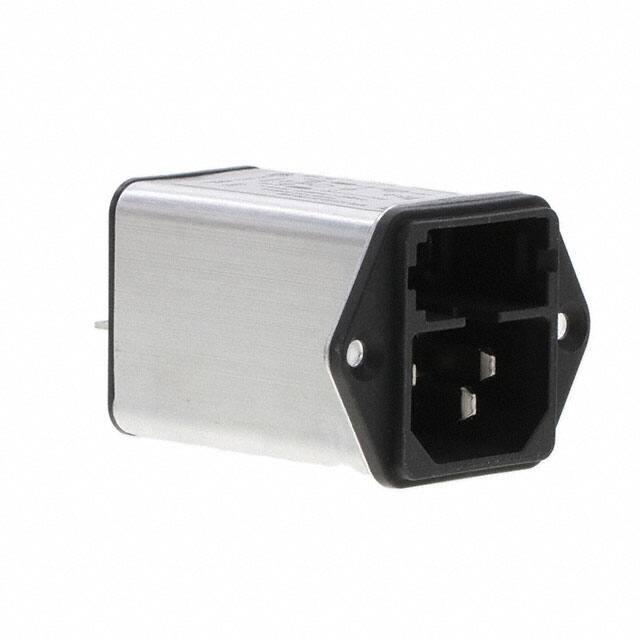

The Schurter 4301.5012 is a filtered power entry module (PEM) combining an IEC 320-C14 appliance inlet, EMI/RFI line filter, and a fuseholder for 5x20mm fuse-links (1- or 2-pole, fuse drawer sold separately). Rated for 2A at 250VAC, it is designed for panel mount installation with a rectangular cutout of 29.00mm x 33.00mm. The module uses quick connect terminals (0.250" / 6.3mm tabs) and offers protection class I with IP40 ingress protection.
The integrated line filter provides standard leakage current below 0.5 mA and medical-grade leakage below 5 µA. Dielectric strength exceeds 1.7 kVDC (L-N) and 2.7 kVDC (L/N-PE). Operating temperature range is -25°C to 85°C. The housing material meets UL94 V-0 flammability rating. Approvals include CCC, cULus, and ENEC.
| Qty | Low | High |
|---|---|---|
| 1+ | $37.71 | $37.71 |
| 10+ | $32.04 | $32.04 |
| 20+ | $29.65 | $29.65 |
| 50+ | $28.60 | $28.60 |
| 100+ | $27.24 | $27.24 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions (Line, Neutral, Earth).
2 amperes (A).
250 VAC.
Panel mount with flange.
It accommodates a fuse but the fuse and drawer are sold separately.
IP40.
