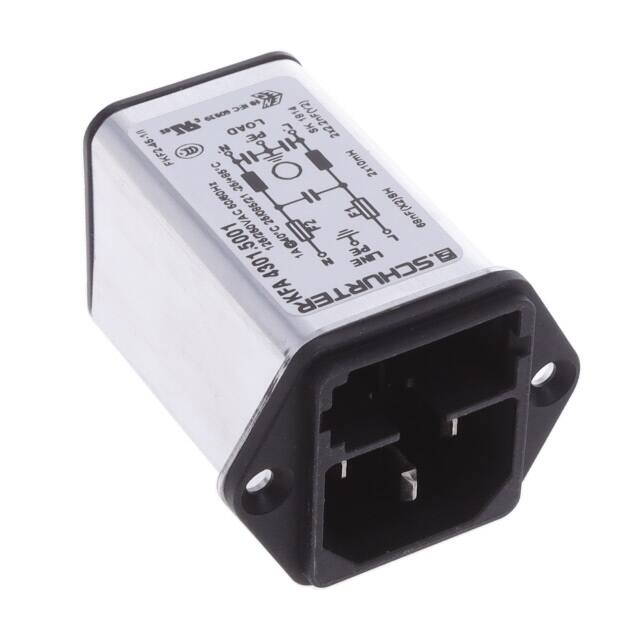

4301.5001 Schurter 4301.5001 is a filtered IEC 320-C14 power entry module rated 1A at 250VAC. It features panel mount with flange, quick connect terminals, and accommodates a fuse drawer (sold separately).
Mfr Part #:

4301.5001

Available from 1 distributors
Mfr Name: Schurter Inc.
Schurter Inc.
Schurter 4301.5001 is a filtered IEC 320-C14 power entry module rated 1A at 250VAC. It features panel mount with flange, quick connect terminals, and accommodates a fuse drawer (sold separately).
✓ Total Stock: 2 pcs
$ Price Range: $27.03 - $38.02

4301.5001 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

4301.5001 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accomodates a Fuse
Approval Agency
Connector Style
Connector Type
Current Rating
Filter Type
Fuse Holder, Drawer
Housing Material
Ingress Protection
Lead Style
Material Flammability Rating
Medical Grade
Mounting Type
Number of Positions
Operating Temperature Range
Panel Cutout Dimensions
Termination
Termination Style
Voltage Rating
View Similar Products (0)

4301.5001 Description

Short technical summary and product information.

The Schurter 4301.5001 is a KFA series power entry module combining an IEC 320-C14 inlet, EMI/RFI line filter, and fuseholder accommodation in a single panel-mount package. Rated for 1A at 250VAC, it provides filtered power entry for commercial equipment requiring conducted emission suppression.



The module includes a commercial-grade filter with 100 nF capacitance, leakage current below 0.5 mA (standard version), and dielectric strength exceeding 1.7 kVDC between line-neutral and 2.7 kVDC between line/neutral and ground. It is designed for panel mounting with a flange and uses quick connect terminals (0.250" / 6.3mm). The housing is black thermoplastic with UL94 V-0 flammability rating and IP40 ingress protection.



This component supports a fuse drawer (sold separately) for 5x20mm fuses, 1- or 2-pole. It is approved by CCC, cULus, and ENEC, and operates over -25°C to 85°C. The V-Lock notch ensures secure cord retention.

4301.5001 Quick Information

Product Type: Power Entry Module (PEM)
Series: KFA
Canonical Name: IEC 320-C14 Power Entry Module with Filter, 1A, 250VAC, Panel Mount
Subcategory: Filtered IEC Inlet

4301.5001 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

4301.5001 Estimated Pricing

Qty Low High
1+ $38.02 $38.02
10+ $32.31 $32.31
20+ $29.90 $29.90
50+ $28.84 $28.84
100+ $27.47 $27.47
200+ $27.03 $27.03

Estimated market price range - modelled values for guidance only, not live distributor offers.

4301.5001 Features

  • IEC 320-C14 filtered power entry module.
  • Rated 1A at 250VAC operation.
  • Panel mount with flange mounting style.
  • Quick connect 0.250" (6.3mm) terminals.
  • Accommodates fuse drawer (sold separately).

4301.5001 Applications

  • Used in commercial power supply units.
  • Ideal for medical equipment (medical version).
  • Suitable for industrial control panels.
  • Applied in test and measurement instruments.

4301.5001 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the current rating of the Schurter 4301.5001?

1 A

What is the voltage rating?

250 VAC

What type of mounting does this part use?

Panel Mount, Flange

Does it include a fuse?

No, the fuse is not included. A fuse drawer is sold separately.

What is the operating temperature range?

-25°C to 85°C

What approvals does this part have?

CCC, cULus, ENEC
