| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
249 pcs
|
249 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accomodates a Fuse | |
| Approval Agency | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Dielectric Strength (Minimum @ L-N) | |
| Dielectric Strength (Minimum @ L/N-PE) | |
| Filter Type | |
| Fuse Holder | |
| Fuse Holder, Drawer | |
| Ingress Protection | |
| Lead Style | |
| Material Flammability Rating | |
| Medical Grade | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature Range | |
| Panel Cutout Dimensions | |
| Panel Thickness | |
| Protection Class | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating | |
| Voltage Rating (Nominal @ UL, CSA) | |
| current_rating (Nominal @ IEC) | |
| current_rating (Nominal @ UL/CSA) | |
| voltage_rating (Nominal @ IEC) |

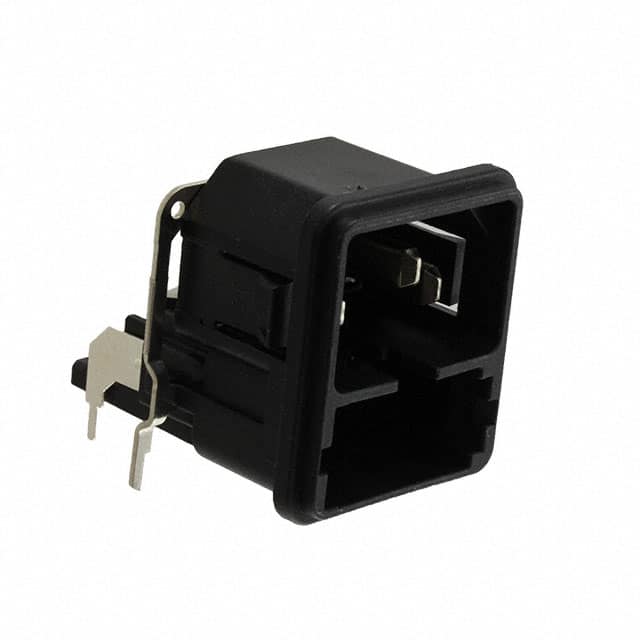

The Schurter 4301.3212 is a KEA-Print series IEC 320-C14 power entry module designed for power supply input applications. It is a 3-position receptacle with male blades, rated 10A at 250VAC under both IEC and UL/CSA standards. The module includes a 1- or 2-pole fuse holder for 5x20mm fuse-links (fuses not included) and meets the requirements of IEC 60335-1 for unattended appliances, including glow wire tests per IEC 60695-2-11.
Electrical characteristics include a dielectric strength of>3 kVAC between L-N and>4 kVAC between L/N-PE, with an operating temperature range of -25°C to 70°C. The front side is rated IP40 per IEC 60529, and the module is suitable for protection class I equipment per IEC 61140. The housing is made of thermoplastic, UL94 V-0 rated, with approvals from CCC, CSA, ENEC, and UL.
Mechanically, the module supports panel mount snap-in or through-hole right-angle mounting with solder terminals. The panel cutout is rectangular 27.60mm x 31.60mm, and the panel thickness for snap-in is 1.5mm, 2mm, or 2.5mm. The V-Lock notch is standard for cord retention, and the design is suitable for medical applications and equipment per IEC/UL 62368-1.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.46 | $7.46 |
| 10+ | $6.75 | $6.75 |
| 25+ | $6.38 | $6.38 |
| 50+ | $6.18 | $6.18 |
| 100+ | $4.78 | $4.78 |
| 250+ | $4.62 | $4.62 |
| 1,000+ | $4.39 | $4.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions.
10 A (IEC and UL/CSA).
250 VAC (IEC and UL/CSA).
Panel mount, snap-in and through hole, right angle.
Yes, it includes a 1- or 2-pole fuse holder for 5x20mm fuses (fuses not included).
3 kVAC between L-N and 4 kVAC between L/N-PE.
-25°C to 70°C.
