| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,350 pcs
|
2350 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
48 pcs
|
48 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
40 pcs
|
40 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| For Use With | |
| Fuse Size | |
| Glow Wire Test | |
| IEC 60335-1 | |
| IEC 60601-1 | |
| IEC/UL 62368-1 | |
| Mounting Style | |
| Number of Poles | |
| Package Type | |
| SVHC Present | |
| Voltage Selector |

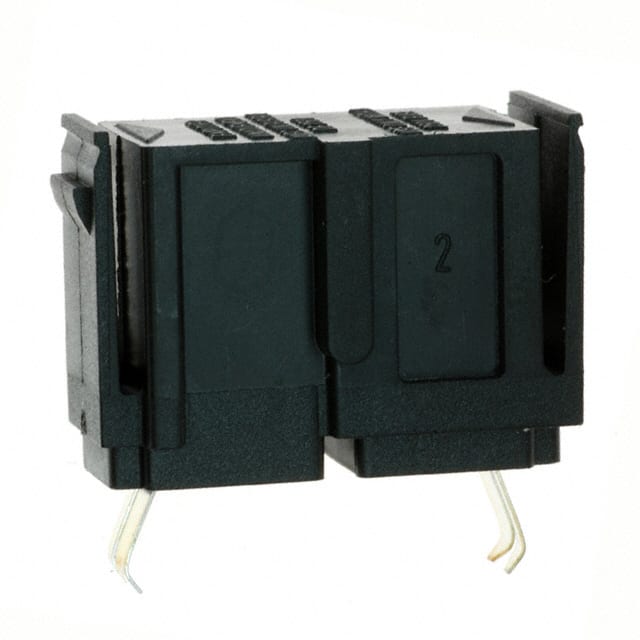

The Schurter 4301.1401 is a 2-pole fuse drawer designed for use with 5x20 mm fuse links. This accessory is part of the PGZ01 series and is intended for applications requiring a replaceable fuse holder integrated into a power entry module.
The fuse drawer snaps into compatible power entry modules, providing a secure and accessible method for fuse replacement. It is compatible with a wide range of Schurter modules including DD11, DD12, DD21, DD14, DD22, KEA-Print, KFA, and KMF. The design supports both 1-pole and 2-pole configurations; the 4301.1401 variant provides 2 poles.
The component is suitable for use in equipment that must meet IEC/UL 62368-1, IEC 60601-1, and IEC 60335-1 safety standards. It also meets glow wire test requirements. The fuse drawer does not include a voltage selector. It is supplied in bulk packaging.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.69 | $5.69 |
| 10+ | $5.06 | $5.06 |
| 25+ | $4.74 | $4.74 |
| 50+ | $4.40 | $4.40 |
| 100+ | $4.23 | $4.23 |
| 250+ | $3.96 | $3.96 |
| 500+ | $3.75 | $3.75 |
| 1,000+ | $3.65 | $3.65 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 4301.1401 fuse drawer is designed for 5x20 mm fuse links.
The 4301.1401 is a 2-pole fuse drawer.
It is compatible with DD11, DD12, DD21, DD14, DD22, KEA-Print, KFA, and KMF modules.
Yes, it is RoHS3 compliant per 2011/65/EU and Amendment 2015/863.
No, the 4301.1401 does not include a voltage selector.
