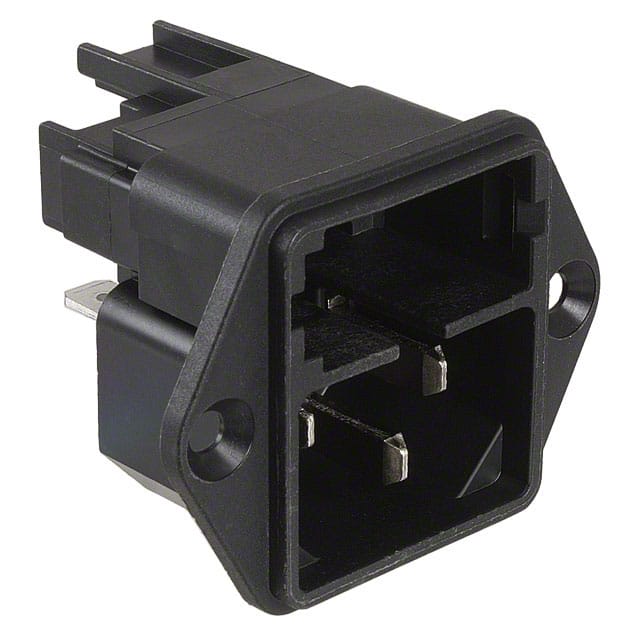

4301.0521 Schurter 4301.0521 is an IEC 320-C14 unfiltered power entry module with a 1- or 2-pole fuseholder for 5x20mm fuses, rated 10A at 250VAC.
Mfr Part #:

4301.0521

Available from 1 distributors
Mfr Name: Schurter Inc.
Schurter Inc.
Schurter 4301.0521 is an IEC 320-C14 unfiltered power entry module with a 1- or 2-pole fuseholder for 5x20mm fuses, rated 10A at 250VAC.
✓ Total Stock: 100 pcs
$ Price Range: $3.63 - $6.09

4301.0521 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
100 pcs
On Request
100 pcs On Request 10 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

4301.0521 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accomodates a Fuse
Approval Agency
Connector Style
Connector Type
Current Rating
Filter Type
Fuse Holder, Drawer
Halogen Free
Industrial Grade
Ingress Protection
Material Flammability Rating
Medical Grade
Mounting Type
Number of Positions
Panel Cutout Dimensions
SVHC Present
Termination
Voltage Rating
View Similar Products (0)

4301.0521 Description

Short technical summary and product information.

The Schurter 4301.0521 is a KEA series IEC 320-C14 appliance inlet module designed for panel mount applications. It combines three functions: an IEC C14 inlet, a fuseholder for 5x20mm fuses (1- or 2-pole), and an optional voltage selector. The module is rated for 10A at 250VAC (IEC and UL/CSA) and features quick connect terminals (4.8 x 0.8mm).



The housing is made of black thermoplastic with a UL94 V-0 flammability rating and offers IP40 front-side protection. The module supports screw-on mounting (front or rear) or snap-in mounting, with panel thickness up to 8mm for screw mount or 1.5/2/2.5mm for snap-in. It is suitable for protection class I equipment and meets IEC/UL 62368-1 requirements.



This unfiltered version is ideal for applications where line filtering is not required, and the integrated fuseholder provides overcurrent protection. The V-Lock notch ensures secure cord retention.

4301.0521 Quick Information

Product Type: Power Entry Module (PEM)
Series: KEA
Canonical Name: IEC Appliance Inlet C14 with Fuseholder 1- or 2-pole
Subcategory: Unfiltered IEC Inlet

4301.0521 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: No

4301.0521 Estimated Pricing

Qty Low High
1+ $6.09 $6.09
10+ $5.18 $5.18
25+ $4.86 $4.86
50+ $4.85 $4.85
100+ $4.40 $4.40
250+ $4.12 $4.12
500+ $3.92 $3.92
1,000+ $3.74 $3.74
2,500+ $3.63 $3.63

Estimated market price range - modelled values for guidance only, not live distributor offers.

4301.0521 Features

  • IEC 320-C14 unfiltered power inlet module.
  • Integrated 1- or 2-pole fuseholder for 5x20mm fuses.
  • Rated 10A at 250VAC for IEC and UL/CSA.
  • Panel mount with screw or snap-in options.
  • UL94 V-0 thermoplastic housing with IP40 protection.

4301.0521 Applications

  • Used in power supplies and industrial equipment.
  • Ideal for appliances requiring overcurrent protection.
  • Suitable for Class I equipment per IEC 61140.
  • Common in IT and audio/video equipment.

4301.0521 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the current rating of the Schurter 4301.0521?

The current rating is 10 A at 250 VAC (IEC and UL/CSA).

What is the voltage rating of the Schurter 4301.0521?

The voltage rating is 250 VAC.

What type of mounting does the 4301.0521 support?

It supports panel mount with screw-on (front or rear) or snap-in mounting.

Does the 4301.0521 include a fuse?

No, the fuse is not included. The module accommodates 5x20mm fuses in a 1- or 2-pole holder.

What is the operating temperature range?

The allowable operating temperature is -25°C to 70°C.

What approvals does the 4301.0521 have?

It is approved by CCC, CSA, ENEC, and UL.
