| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accomodates a Fuse | |
| Approval Agency | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Dielectric Strength (Minimum @ L-N) | |
| Dielectric Strength (Minimum @ L/N-PE) | |
| Filter Type | |
| Flammability Rating | |
| Fuse Accommodation | |
| Fuse Holder Type | |
| Fuse Holder, Drawer | |
| Fuseholder Specification | |
| Ingress Protection | |
| Material Flammability Rating | |
| Medical Grade | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature Range | |
| Panel Cutout Dimensions | |
| Panel Thickness (Maximum @ Screw-on mounting) | |
| Panel Thickness (Nominal @ Snap-in mounting) | |
| Power Acceptance (Nominal @ 1 pole @ Ta 23 °C) | |
| Power Acceptance (Nominal @ 2-pole @ Ta 23 °C) | |
| Protection Class | |
| Termination | |
| Termination Style | |
| Voltage Rating | |
| Voltage Selector |

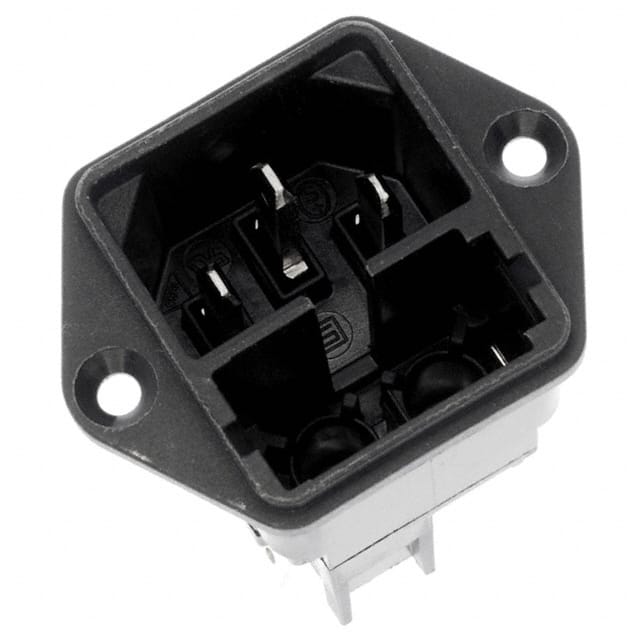

The Schurter 4301.0501 is a KEA series IEC 320-C14 appliance inlet with an integrated fuseholder for 5x20mm fuses. It combines three functions: appliance inlet, fuseholder (1- or 2-pole), and optional voltage selector. The module is designed for panel mount with screw-on or snap-in mounting options. It features quick connect terminals (4.8x0.8mm) and a V-Lock notch for cord retention. Electrical ratings are 10A at 250VAC (IEC and UL/CSA). Dielectric strength exceeds 3kVAC between L-N and 4kVAC between L/N-PE. The housing is made of thermoplastic with UL94 V-0 flammability rating. Operating temperature range is -25°C to 70°C. The module meets IP40 protection on the front side and is suitable for protection class I equipment. It complies with IEC 60335-1 for unattended appliances and is approved by CCC, CSA, ENEC, and UL. This unfiltered module is ideal for applications requiring a compact power entry solution with integrated fuse protection.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.95 | $7.95 |
| 10+ | $6.76 | $6.76 |
| 25+ | $6.34 | $6.34 |
| 50+ | $6.03 | $6.03 |
| 100+ | $5.74 | $5.74 |
| 250+ | $5.38 | $5.38 |
| 500+ | $5.36 | $5.36 |
| 1,000+ | $5.09 | $5.09 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 10A.
The voltage rating is 250VAC.
It has 3 positions.
Panel mount with screw-on or snap-in mounting.
No, the fuse is not included. It accommodates 5x20mm fuses.
-25°C to 70°C.
CCC, CSA, ENEC, and UL approvals.
