| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Carrier Material | |
| Contact Finish | |
| Contact Material | |
| Contact Plating | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Housing Material | |
| Ingress Protection | |
| Insulation Resistance | |
| Material Flammability Rating | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Panel Thickness Range | |
| Pollution Degree | |
| Primary Material | |
| Primery Material | |
| Sealing Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Shroud Material | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

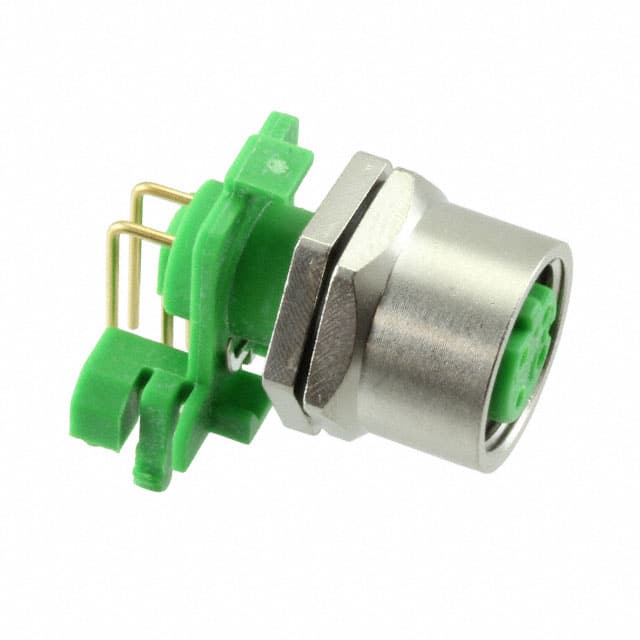

The Conec 43-01229 is a shielded M12-4 female socket circular connector with 4 positions. It features a copper zinc shell with nickel finish and gold-plated contacts for reliable signal transmission. The connector is rated for 4 A at 40 °C and 250 V per IEC 61076-2-101, with insulation resistance of at least 100 MOhm and pollution degree 3 per IEC 60664-1.
Designed for harsh environments, it offers IP67 protection in mated condition, operating temperature range of -30 °C to +85 °C, and a minimum of 100 mating cycles. The connector utilizes a threaded fastening type and bulkhead mounting, with right-angle through-hole solder termination for PCB integration. It includes board guide and board lock features for secure mounting, and accepts panel thicknesses of 2 to 3 mm.
Materials include PA 6.6 contact carrier with UL94 V-0 flammability rating, FPM sealing, and CuSn6 shroud with tin plating. The connector is RoHS compliant and suitable for industrial Ethernet, sensor, and actuator applications in automation and control systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $11.21 | $11.21 |
| 10+ | $9.52 | $9.52 |
| 20+ | $8.81 | $8.81 |
| 50+ | $8.49 | $8.49 |
| 100+ | $8.09 | $8.09 |
| 200+ | $7.70 | $7.70 |
| 1,000+ | $7.43 | $7.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 4 positions (female sockets).
4 A at 40 °C per IEC 61076-2-101.
250 V per IEC 61076-2-101.
Panel mount, through hole, right angle with bulkhead feature.
IP67 - dust tight and waterproof in mated condition.
-30 °C to +85 °C per IEC 60664-1.
Copper zinc shell with nickel finish.
