| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11 pcs
|
11 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Back Shell Style | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Size | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Industrial Grade | |
| Ingress Protection | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Material | |
| Shielding | |
| Termination | |
| Termination Style | |
| Voltage Rating |

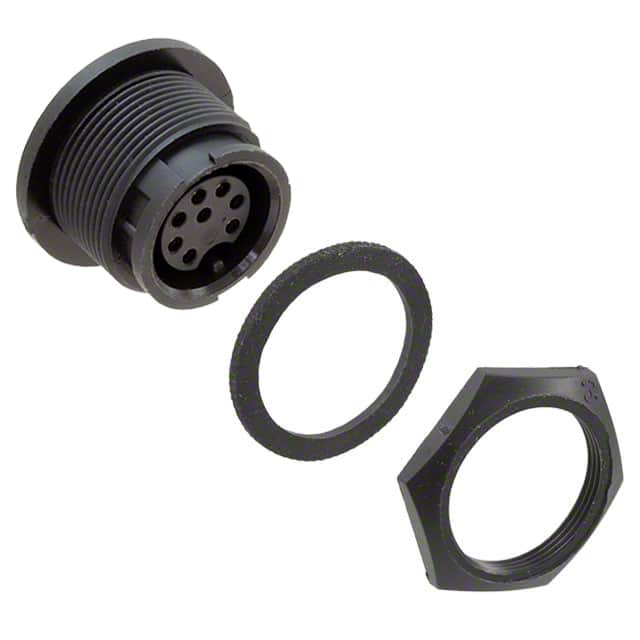

The 4291-8SG-300 is a circular connector receptacle from Conxall/Switchcraft's Multi-Con-X series. It features 8 female socket contacts with gold over nickel plating, providing reliable signal integrity. The connector is rated for 5.6A per contact and 600V, with an operating temperature range of -40°C to 115°C.
This receptacle is designed for panel mount installation with a bulkhead front side nut and through-hole solder termination. The shell is made of black polyamide (nylon) plastic, and the connector uses a bayonet lock fastening system with keyed orientation for secure mating. It is weathertight, offering ingress protection suitable for outdoor or harsh environments.
The part number suffix -300 indicates a panel mount back shell style with hex nut and gasket. The connector is unshielded and uses #20 size contacts, which support 4 to 9 contacts per the datasheet.
| Qty | Low | High |
|---|---|---|
| 1+ | $22.16 | $22.16 |
| 50+ | $14.28 | $14.28 |
| 100+ | $12.81 | $12.81 |
| 500+ | $11.83 | $11.83 |
| 1,000+ | $11.20 | $11.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 8 positions (female sockets).
The current rating is 5.6A per contact.
The voltage rating is 600V.
It uses panel mount with through-hole solder termination and a bulkhead front side nut.
The operating temperature range is -40°C to 115°C.
No, it is unshielded.
The shell is made of polyamide (nylon) plastic, black in color.
