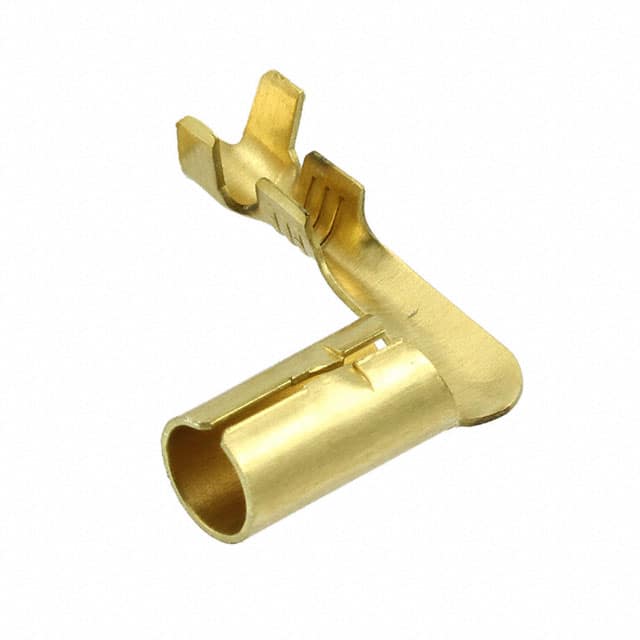

42700-1 Non-insulated crimp female receptacle (socket) with right angle terminal, accepts 16-20 AWG wire, made of brass.
Mfr Part #:

42700-1

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
Non-insulated crimp female receptacle (socket) with right angle terminal, accepts 16-20 AWG wire, made of brass.
✓ Total Stock: 4,000 pcs
$ Price Range: $0.15 - $0.18

42700-1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
4,000 pcs
On Request
4000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

42700-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contact Material
Diameter
Insulation
Length
SVHC Present
Tape & Reel
Terminal Type
Termination
Wire Gauge
View Similar Products (0)

42700-1 Description

Short technical summary and product information.

The TE Connectivity 42700-1 is a non-insulated crimp female receptacle terminal designed for 16-20 AWG wire. The part features a right-angle terminal style, making it suitable for applications where a low-profile or board-edge connection is needed. The contact is constructed from brass for good electrical conductivity and mechanical strength. With a length of 9.14mm (0.360 inches) and a diameter of 4.57mm (0.180 inches), this terminal is intended for use in barrel and bullet connector systems, commonly found in power and signal interconnects.

42700-1 Quick Information

Product Type: Crimp Terminal, Receptacle
Canonical Name: TE Connectivity 42700-1 Non-Insulated Crimp Female Receptacle, Right Angle, 16-20 AWG
Subcategory: Receptacle Terminal

42700-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

42700-1 Estimated Pricing

Qty Low High
4,000+ $0.18 $0.18
8,000+ $0.17 $0.17
12,000+ $0.16 $0.16
48,000+ $0.15 $0.15

Estimated market price range - modelled values for guidance only, not live distributor offers.

42700-1 Features

  • Crimp termination for 16-20 AWG wire.
  • Right-angle female receptacle terminal.
  • Non-insulated brass contact construction.
  • 9.14mm length and 4.57mm diameter.

42700-1 Applications

  • Used in power and signal wire harnesses.
  • Ideal for right-angle board connections.

42700-1 FAQs

6 frequently asked questions generated from this part’s specifications.
What wire gauge is the 42700-1 compatible with?

16-20 AWG

What is the termination type?

Crimp

Is the contact insulated?

No, it is non-insulated.

What material is the contact made from?

Brass

What is the length of the terminal?

9.14mm (0.360 inches)

What is the diameter of the terminal?

4.57mm (0.180 inches)
