425F35B025M0000

The CTS-Frequency Controls 425F35B025M0000 is a surface mount MHz crystal designed for precise timing applications. It operates at a nominal frequency of 25 MHz with a fundamental mode of oscillation. The crystal features a load capacitance of 13 pF, frequency tolerance of ±30 ppm, and frequency stability of ±50 ppm over the operating temperature range of -20°C to 70°C. The equivalent series resistance (ESR) is rated at 80 Ω maximum, ensuring efficient performance.

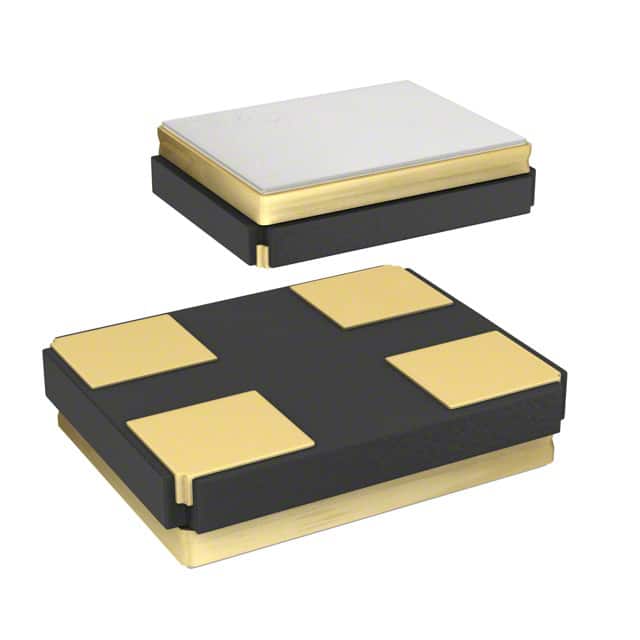

This crystal is housed in a compact 4-SMD, no lead package measuring 2.50 mm x 2.00 mm x 0.65 mm, making it suitable for space-constrained designs. It is RoHS compliant and REACH unaffected, with an MSL rating of 1 (unlimited). The surface mount design allows for automated assembly and reflow soldering processes.

Typical applications include clock generation in microcontrollers, timing circuits in communication modules, and frequency reference in consumer electronics. The crystal's fundamental mode operation and low ESR contribute to stable and reliable performance in various electronic systems.
