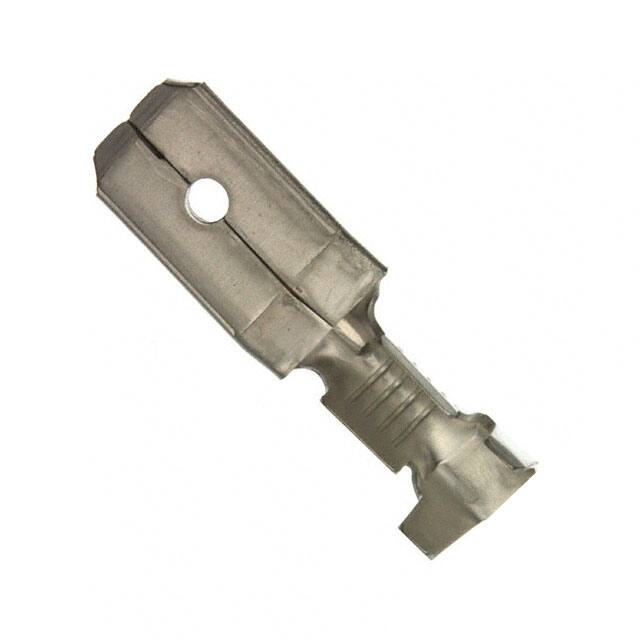

42474-4 Non-insulated male quick connect tab with 0.250" (6.35mm) tab width, designed for 14-18 AWG wire. Features crimp termination and tin-plated brass contact.
Mfr Part #:

42474-4

Available from 2 distributors
Mfr Name: TE Connectivity
TE Connectivity
Non-insulated male quick connect tab with 0.250" (6.35mm) tab width, designed for 14-18 AWG wire. Features crimp termination and tin-plated brass contact.
✓ Total Stock: 9,075 pcs
$ Price Range: $0.11 - $0.14

42474-4 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
9,000 pcs
On Request
9000 pcs On Request 1 On Request On Request On Request On Request On Request
Partservice ✓
Non-Authorised Inventory information
75 pcs
On Request
75 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

42474-4 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contact Finish
Contact Material
Gender
Insulation
Length
Mounting Type
Tab Length
Tab Thickness
Tab Width
Tape & Reel
Terminal Type
Termination
Wire Gauge
View Similar Products (0)

42474-4 Description

Short technical summary and product information.

The TE Connectivity 42474-4 is a non-insulated male quick connect tab terminal. It is designed for 14-18 AWG wire and features a 0.250" (6.35mm) tab width with a tab length of 0.370" (9.40mm) and thickness of 0.032" (0.81mm). The terminal uses crimp termination for secure wire connections and is mounted in free hanging (in-line) style. The contact is made of brass with a tin finish, providing good conductivity and corrosion resistance. This component is suitable for applications requiring reliable electrical connections in a compact form factor. The total length of the terminal is 20.57mm (0.810"). It is available in tape and reel packaging for automated assembly processes.

42474-4 Quick Information

Product Type: Quick Connect Tab
Canonical Name: Non-Insulated Male Quick Connect Tab, 0.250" (6.35mm) Tab Width, 14-18 AWG, Crimp Termination
Subcategory: Non-Insulated Quick Disconnect Terminal

42474-4 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

42474-4 Estimated Pricing

Qty Low High
3,000+ $0.14 $0.14
6,000+ $0.13 $0.13
12,000+ $0.12 $0.12
45,000+ $0.11 $0.11
99,000+ $0.11 $0.11

Estimated market price range - modelled values for guidance only, not live distributor offers.

42474-4 Features

  • Non-insulated male quick connect tab for 14-18 AWG wire.
  • 0.250 inch (6.35mm) tab width for standard mating.
  • Crimp termination for secure wire attachment.
  • Tin-plated brass contact for reliable conductivity.
  • Free hanging in-line mounting style.

42474-4 Applications

  • Designed for use in quick disconnect terminal systems.
  • Commonly used in electrical panel wiring.
  • Applicable for wire harness assembly.

42474-4 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the tab width of the 42474-4?

The tab width is 0.250 inch (6.35mm).

What wire gauge does this terminal support?

It supports 14-18 AWG wire.

Is this terminal insulated?

No, it is non-insulated.

What is the contact material and finish?

The contact is brass with a tin plating finish.

What termination method is used?

Crimp termination.

What is the overall length of the terminal?

The overall length is 20.57mm (0.810 inch).
