| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Coupler Type | |
| Coupling Factor | |
| Frequency | |
| Frequency Range | |
| Insertion Loss | |
| Power | |
| Storage Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel |

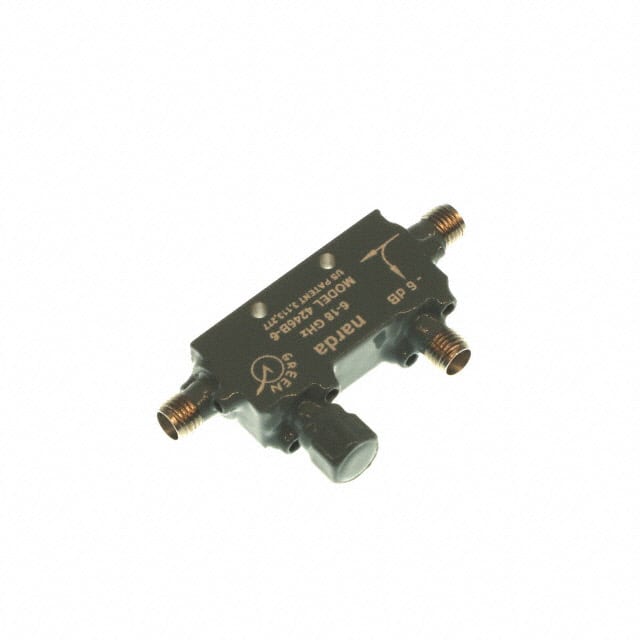

This L3 Narda-MITEQ 4246B-6 is a directional RF coupler designed for multi-octave frequency coverage from 0.6 GHz to 18 GHz. It features a 6dB coupling factor with a maximum insertion loss of 0.8 dB and a minimum directivity of 15 dB.
The coupler has a maximum VSWR of 1.4:1 for both primary and secondary lines. It is rated for an average forward power of 2 W and a maximum power of 50W. The device operates within a guaranteed temperature range of 23°C.
Designed for MIL environments, this coupler is built for reliability and performance. It is supplied in a module package, suitable for various general-purpose RF applications. The compact and lightweight design makes it suitable for integration into systems where space and weight are critical factors.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The frequency range is 0.6 GHz to 18 GHz.
The coupling factor is 6 dB.
The maximum insertion loss is 0.8 dB.
The minimum directivity is 15 dB.
The average forward power is 2 W.
The guaranteed operating temperature is 23 °C.
