| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,000 pcs
|
9000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Length | |
| Mounting Type | |
| Overall Length | |
| SVHC Present | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Tape & Reel | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Wire Gauge |

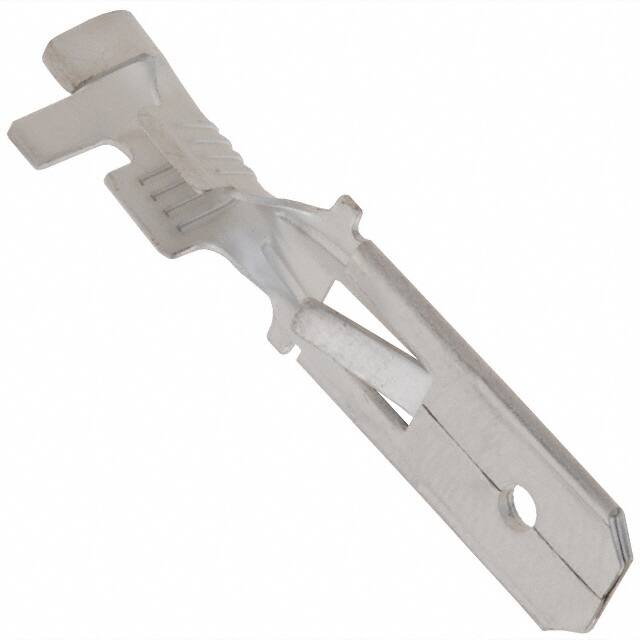

The TE Connectivity 42460-2 is a non-insulated male quick connect tab designed for reliable wire-to-wire or wire-to-board connections. It features a standard terminal type with a tab width of 0.250" (6.35mm) and a tab thickness of 0.032" (0.81mm), making it suitable for common quick disconnect applications.
The tab is made from brass with a tin-plated finish, offering good conductivity and corrosion resistance. It accepts wire gauges from 14 AWG to 18 AWG and uses a crimp termination style for secure attachment. The overall length is 28.12mm (1.107"). This connector is free hanging (in-line) and does not require a mounting hole.
As a non-insulated terminal, it is typically used with heat shrink or other insulation methods if required. The 42460-2 is commonly employed in automotive, industrial control, and appliance wiring where reliable disconnect capability is needed.
| Qty | Low | High |
|---|---|---|
| 9,000+ | $0.10 | $0.10 |
| 27,000+ | $0.10 | $0.10 |
| 45,000+ | $0.09 | $0.09 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 42460-2 accepts wire gauges from 14 AWG to 18 AWG.
No, the 42460-2 is a non-insulated terminal.
The tab width is 0.250" (6.35mm).
The contact material is brass with a tin-plated finish.
The 42460-2 uses crimp termination.
The overall length is 28.12mm (1.107 inches).
Yes, the mounting type is Free Hanging (In-Line).
