| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
95 pcs
|
95 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Length | |
| Mounting Type | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Tape & Reel | |
| Terminal Type | |
| Termination | |
| Wire Gauge |

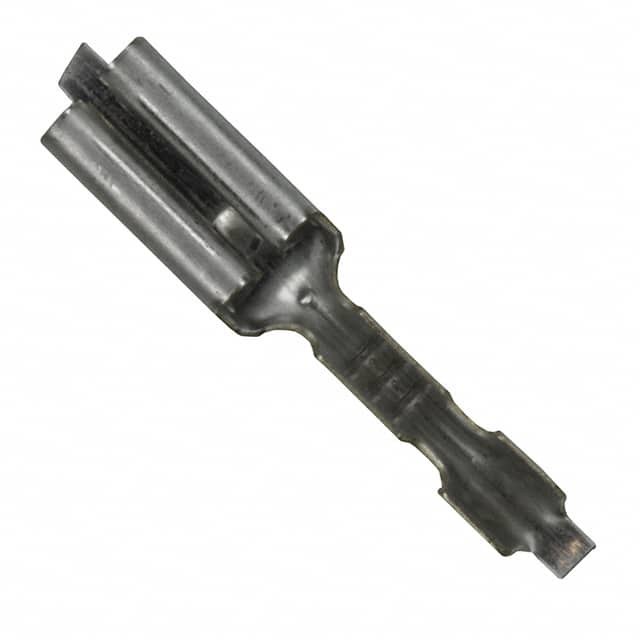

The TE Connectivity 42415-1 is a non-insulated female quick disconnect terminal designed for 22-24 AWG wire. It features a brass contact with tin plating for reliable conductivity and corrosion resistance. The terminal has a tab width of 0.110" (2.79mm), tab thickness of 0.016" (0.41mm), and tab length of 0.250" (6.35mm).
This terminal uses crimp termination for secure wire attachment, suitable for free hanging (in-line) mounting. The overall length is 0.635" (16.13mm). The non-insulated design allows for compact connections in space-constrained environments.
As a quick disconnect terminal, it provides a reusable connection that can be easily mated and unmated without tools. The tin-plated brass contact material ensures good electrical conductivity and resistance to oxidation. This terminal is commonly used in wire-to-wire connections in automotive, appliance, and industrial applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.15 | $0.15 |
| 10+ | $0.13 | $0.13 |
| 25+ | $0.11 | $0.11 |
| 100+ | $0.11 | $0.11 |
| 250+ | $0.10 | $0.10 |
| 1,000+ | $0.09 | $0.09 |
| 2,500+ | $0.09 | $0.09 |
| 5,000+ | $0.08 | $0.08 |
| 10,000+ | $0.08 | $0.08 |
| 15,000+ | $0.08 | $0.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Free hanging (in-line) mounting.
22-24 AWG.
0.110" (2.79mm).
No, it is non-insulated.
Crimp termination.
Brass contact with tin finish.
Female.
