| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Style | |
| Voltage Rating |

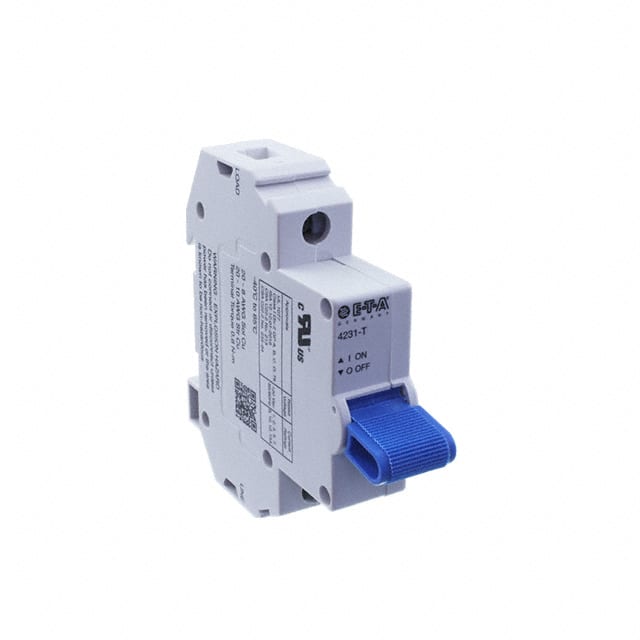

This E-T-A 4231-T110-K0F2H-10A is a single-pole, hydraulic-magnetic miniature circuit breaker (MCB) designed for high-performance applications. It is compliant with UL1077, CSA22.2, and UL Class I Division 2 standards, making it suitable for hazardous locations.
The breaker has a current rating of 10A and a voltage rating of 120VAC, with an interrupting capacity of 1000A. It features a DIN rail mounting type and screw terminals for easy installation. The characteristic curve is defined as AC short time delay.
Typical applications include oil & gas drilling and production, agricultural processing and storage, and saw mill/pulp & paper production where flammable liquids, gases, vapors, or combustible dust may be present. The operating temperature range is -40°C to 65°C, and it offers a dielectric strength of 1250 V RMS.
With a degree of protection IP20, this circuit breaker is built for reliable operation in demanding environments. It is approved by CSA C22.2 No 213, UL1077, and UL Class I Division 2.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 10A.
The voltage rating is 120VAC.
It is designed for DIN rail mounting.
It is approved by CSA C22.2 No 213, UL1077, and UL Class I Division 2.
The operating temperature range is -40°C to 65°C.
The interrupting capacity is 1000A.
It is a hydraulic-magnetic miniature circuit breaker.
