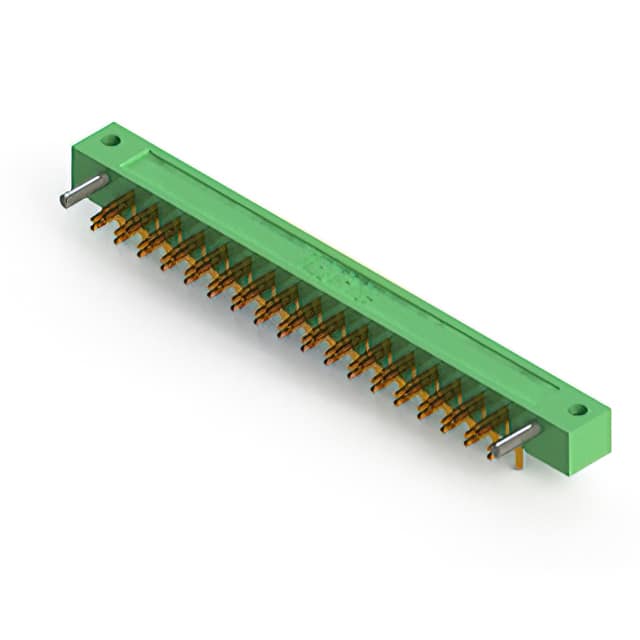

The Edac 423-035-521-102 is a 35 position card edge connector from the 423 series. It features 0.200" (5.08 mm) contact spacing and 0.300" (7.62 mm) row spacing in a staggered grid arrangement. The connector uses Edacon hermaphroditic contact mating design with copper alloy contacts plated with gold over nickel over the entire contact surface.
Electrical specifications include a current rating of 10 amps, contact resistance of 10 milliohms maximum, dielectric withstanding voltage of 2000 V AC rms at sea level, and insulation resistance of 5000 megohms minimum. The operating temperature range is -65°C to +125°C.
The insulator is made of diallyl phthalate with UL 94V-0 flammability rating. The connector is designed for mounting into 0.062" (1.57 mm) or 0.093" (2.36 mm) nominal thickness PC boards by soldering and/or staking of PC tails. The tail size is .044 x .025 (1.12 x 0.64) with a tail length of 0.153" (3.89 mm). Mounting is via 0.128" diameter mounting holes and guide pins as per MIL-C-21097.
| Qty | Low | High |
|---|---|---|
| 1+ | $48.77 | $48.77 |
| 10+ | $42.80 | $42.80 |
| 25+ | $39.35 | $39.35 |
| 50+ | $38.73 | $38.73 |
| 100+ | $36.63 | $36.63 |
| 250+ | $34.34 | $34.34 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
35 positions.
0.200" (5.08 mm) contact spacing with 0.300" (7.62 mm) row spacing.
10 amps.
-65°C to +125°C.
Copper alloy contacts with gold plating over nickel over the entire contact.
Diallyl phthalate with UL 94V-0 rating.
0.062" (1.57 mm) or 0.093" (2.36 mm) nominal thickness.
