| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
17,500 pcs
|
17500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
27 pcs
|
27 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
17 pcs
|
17 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Length | |
| Mounting Type | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Tape & Reel | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Wire Gauge |

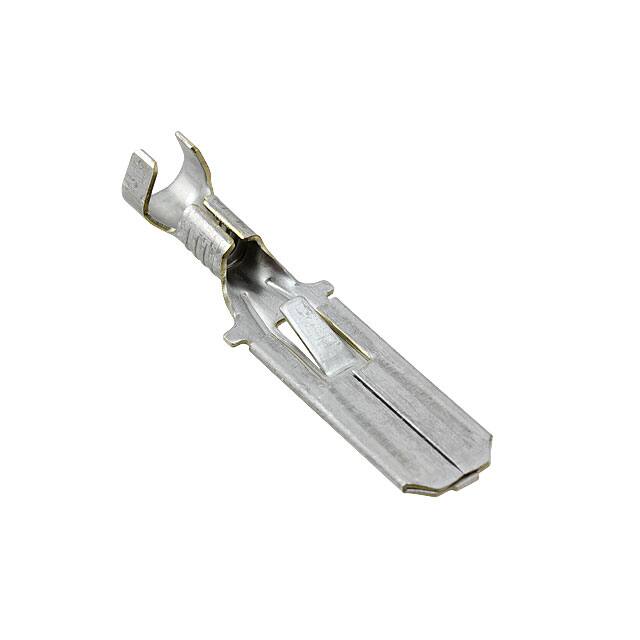

The TE Connectivity 42241-2 is a standard male quick connect tab terminal designed for reliable wire-to-wire or wire-to-board connections. It features a 0.250" (6.35mm) tab width and 0.032" (0.81mm) tab thickness, with a tab length of 0.620" (15.75mm). The terminal accepts 14-18 AWG wire and uses a crimp termination method for secure attachment.
Constructed from brass with a tin contact finish, the 42241-2 offers good conductivity and corrosion resistance. It is a non-insulated terminal, making it suitable for applications where insulation is not required or where additional insulation can be applied separately. The free hanging (in-line) mounting style allows for flexible installation in harnesses or direct wire connections.
This terminal is commonly used in power distribution, automotive, and industrial control systems where quick disconnect functionality is needed. Its compact 29.18mm overall length facilitates use in space-constrained environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.34 | $0.34 |
| 10+ | $0.29 | $0.29 |
| 25+ | $0.26 | $0.26 |
| 100+ | $0.25 | $0.25 |
| 250+ | $0.19 | $0.19 |
| 1,000+ | $0.17 | $0.17 |
| 5,000+ | $0.17 | $0.17 |
| 10,000+ | $0.17 | $0.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The tab width is 0.250" (6.35mm).
It accepts 14-18 AWG wire.
No, it is a non-insulated terminal.
The termination method is crimp.
The contact material is brass with a tin finish.
