| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12,724 pcs
|
12724 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Wire Gauge |

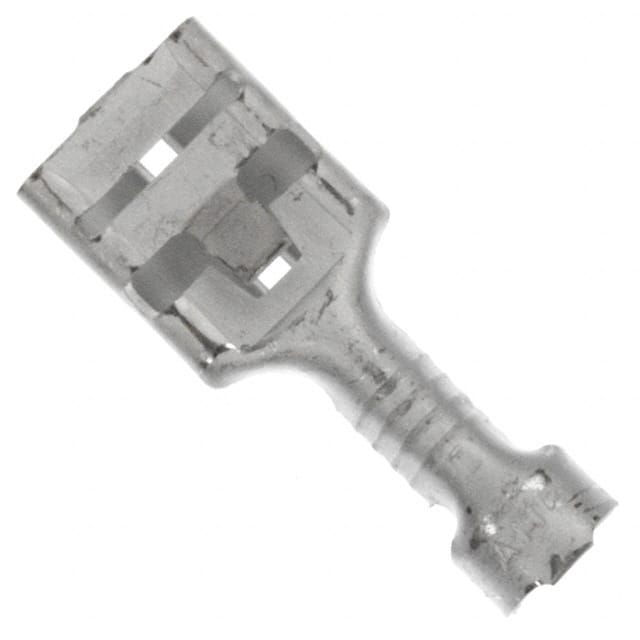

The TE Connectivity 42238-2 is a non-insulated quick disconnect receptacle designed for 14-18 AWG wire. It features a 0.250" (6.35mm) tab width and 0.032" (0.81mm) tab thickness, making it compatible with standard male quick disconnect tabs. The terminal is crimp-style and constructed from brass with a tin finish for good conductivity and corrosion resistance.
This receptacle is free hanging (in-line) mounting type, suitable for wire-to-wire connections. The overall length is 20.32mm (0.800"). It is RoHS3 compliant and has an MSL of 1 (unlimited).
With its durable construction and standard dimensions, the 42238-2 is widely used in automotive, appliance, and industrial applications where reliable quick connections are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.33 | $0.33 |
| 10+ | $0.28 | $0.28 |
| 25+ | $0.26 | $0.26 |
| 50+ | $0.25 | $0.25 |
| 100+ | $0.24 | $0.24 |
| 250+ | $0.22 | $0.22 |
| 500+ | $0.21 | $0.21 |
| 1,000+ | $0.20 | $0.20 |
| 2,500+ | $0.19 | $0.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The tab width is 0.250" (6.35mm).
It accepts 14-18 AWG wire.
Crimp termination.
No, it is non-insulated.
Free hanging (in-line) mounting.
Brass with tin finish.
RoHS3 Compliant (unverified).
