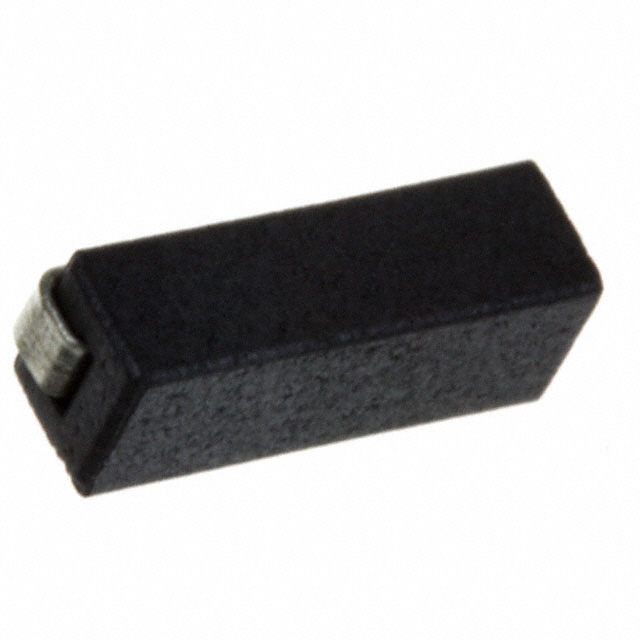

4221-2 Ferrite bead, 95 Ohm impedance at 100 MHz, 5A current rating, surface mount package.
Mfr Part #:

4221-2

Available from 2 distributors
Mfr Name: API Delevan Inc.
API Delevan Inc.
Ferrite bead, 95 Ohm impedance at 100 MHz, 5A current rating, surface mount package.
✓ Total Stock: 3,851 pcs
$ Price Range: $1.42 - $3.36

4221-2 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
3,833 pcs
On Request
3833 pcs On Request 1 On Request On Request On Request On Request On Request
Fe Components ✓
Non-Authorised Inventory information
18 pcs
On Request
18 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

4221-2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating (Max)
DC Resistance (DCR) (Max)
Height (Max)
Impedance @ Frequency
Lead Style
Length
Mounting Type
Number of Lines
Operating Temperature
Tape & Reel
Width
View Similar Products (0)

4221-2 Description

Short technical summary and product information.

The API Delevan 4221-2 is a single-line ferrite bead designed for EMI suppression in various electronic circuits. It offers 95 Ohm impedance at 100 MHz, a maximum DC resistance of 0.8 mOhm, and a current rating of 5 A. The device operates over a temperature range of -55°C to 125°C.



The ferrite bead is housed in a 2-SMD J-Lead surface mount package with dimensions 9.50 mm x 3.05 mm x 3.25 mm. It is suitable for filtering high-frequency noise in power lines and signal lines where high current capacity is required.

4221-2 Quick Information

Product Type: Ferrite Bead
Canonical Name: Ferrite Bead, 95 Ohm, 5 A, 1 Line, 2-SMD J-Lead
Subcategory: Surface Mount Ferrite Bead

4221-2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

4221-2 Estimated Pricing

Qty Low High
1+ $3.36 $3.36
10+ $2.30 $2.30
25+ $1.95 $1.95
50+ $1.71 $1.71
100+ $1.49 $1.49
250+ $1.42 $1.42
500+ $1.42 $1.42

Estimated market price range - modelled values for guidance only, not live distributor offers.

4221-2 Features

  • 95 Ohm impedance at 100 MHz.
  • 5 Amp DC current rating.
  • 0.8 milliohm maximum DC resistance.
  • Surface mount 2-SMD J-Lead package.
  • Operating temperature from -55 to 125°C.

4221-2 Applications

  • Suppresses EMI in power supply lines.
  • Filters high frequency noise in circuits.
  • Suitable for high current applications.
  • Ideal for single-line filtering needs.
  • Used in automotive and industrial environments.

4221-2 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the impedance of the 4221-2 ferrite bead?

95 ohms at 100 MHz.

What is the maximum DC resistance?

0.8 milliohm maximum.

What is the current rating?

5 amperes maximum.

How many lines does it have?

1 line.

What is the operating temperature range?

-55°C to 125°C.

What is the package type?

2-SMD J-Lead, surface mount.

Is the 4221-2 RoHS compliant?

Precomputed data indicates RoHS3 Compliant, but distributor data reports non-compliant. Verify with manufacturer for definitive status.
