| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Max) | |
| DC Resistance (DCR) (Max) | |
| Height | |
| Height (Max) | |
| Impedance @ Frequency | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Tape & Reel | |
| Width |

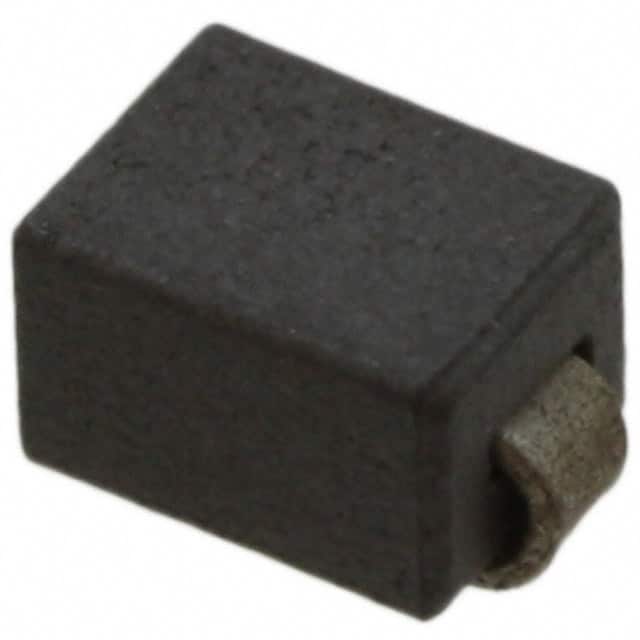

The API Delevan Inc. 4221-1 is a single-line surface mount ferrite bead designed for EMI suppression in high-current applications. It offers a nominal impedance of 47 Ω at 100 MHz, making it suitable for filtering noise on power and signal lines.
The component is rated for a maximum continuous current of 5 A and features a low typical DC resistance of 0.8 mΩ, minimizing power loss and heat generation. It operates over a wide temperature range of -55°C to 125°C, ensuring reliability in harsh environments.
Housed in a compact 2-SMD J-Lead package (5.00 mm x 3.05 mm x 3.25 mm), the 4221-1 is compatible with standard surface mount assembly processes. Its single-line design focuses on filtering a single conductor.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.36 | $3.36 |
| 10+ | $2.30 | $2.30 |
| 25+ | $1.95 | $1.95 |
| 50+ | $1.71 | $1.71 |
| 100+ | $1.49 | $1.49 |
| 250+ | $1.42 | $1.42 |
| 500+ | $1.42 | $1.42 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The impedance is 47 Ω at 100 MHz (nominal).
The maximum current rating is 5 A.
The typical DC resistance is 0.8 mΩ.
The operating temperature range is -55°C to 125°C.
The package is 2-SMD with J-Lead.
RoHS status is reported as RoHS3 Compliant but is unverified.
