| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Diameter (Max) | |
| Cable Diameter (Min) | |
| Color | |
| Includes | |
| Ingress Protection | |
| Material | |
| Operating Temperature | |
| Outside Cable Diameter (Max) | |
| Outside Cable Diameter (Min) | |
| Panel Hole Size | |
| Thread Length | |
| Thread Size | |
| Thread Type | |
| Type |

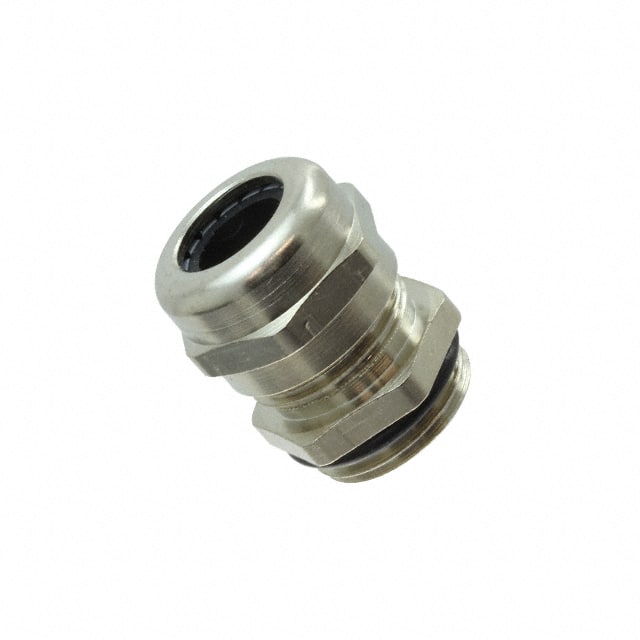

The Altech Corporation 4220620 is a cable gland designed for securing and sealing cables where they enter enclosures. It features a brass construction with a nickel plated finish, providing corrosion resistance and a silver appearance. The gland has a metric M20x1.5 thread with a thread length of 6.00 mm and requires a panel hole size of 20.0 mm. It accommodates cables with an outer diameter ranging from 7.00 mm to 13.00 mm. The gland includes a sealing ring and is rated IP68 for dust tight and waterproof protection. It operates over a temperature range of -40 to 100°C. This cable gland is suitable for use in industrial, commercial, and outdoor applications where reliable cable entry sealing is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.27 | $5.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The thread size is M20x1.5 (metric).
It accepts cables with outer diameter from 7.00 mm to 13.00 mm.
The cable gland is rated IP68 (dust tight, waterproof).
The operating temperature range is -40 to 100°C.
It is made of brass with nickel plating.
