| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
192,000 pcs
|
192000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |||||||||
|
50,000 pcs
|
50000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |||||||||
|
24,000 pcs
$0.17
|
24000 pcs |
$0.17
|
1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Wire Gauge |

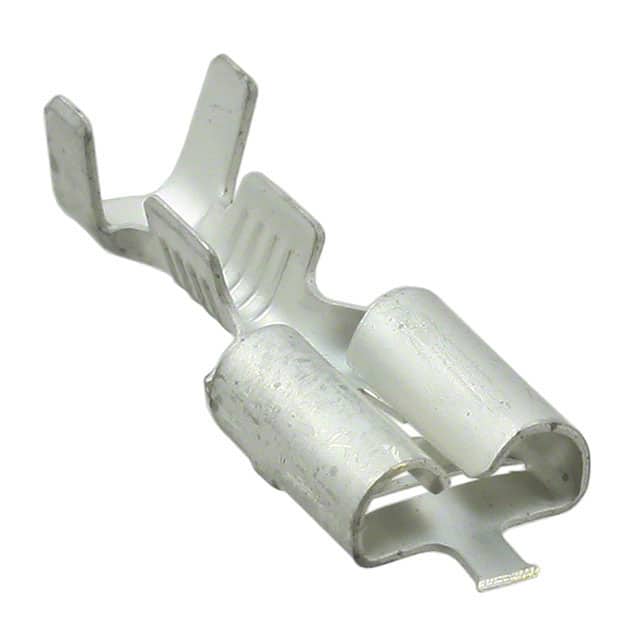

The TE Connectivity 42100-2 is a standard female quick disconnect terminal designed for reliable wire-to-tab connections. It accepts 14 to 18 AWG wire and features a 0.250" (6.35mm) tab width with a 0.032" (0.81mm) tab thickness and 0.290" (7.37mm) tab length. The contact is made from brass with a tin finish, providing good conductivity and corrosion resistance. This non-insulated terminal uses a crimp termination method and is intended for free hanging (in-line) mounting. It is commonly used in power distribution, appliance wiring, and automotive applications where a secure, separable connection is needed.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.18 | $0.18 |
| 10+ | $0.15 | $0.15 |
| 25+ | $0.14 | $0.14 |
| 50+ | $0.13 | $0.13 |
| 100+ | $0.13 | $0.13 |
| 250+ | $0.12 | $0.12 |
| 500+ | $0.11 | $0.11 |
| 1,000+ | $0.11 | $0.11 |
| 2,500+ | $0.10 | $0.10 |
| 12,000+ | $0.09 | $0.09 |
| 24,000+ | $0.08 | $0.08 |
| 36,000+ | $0.08 | $0.08 |
| 60,000+ | $0.08 | $0.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It accepts 14 to 18 AWG wire.
The tab width is 0.250" (6.35mm).
No, it is non-insulated.
It uses crimp termination.
The contact is brass with a tin finish.
